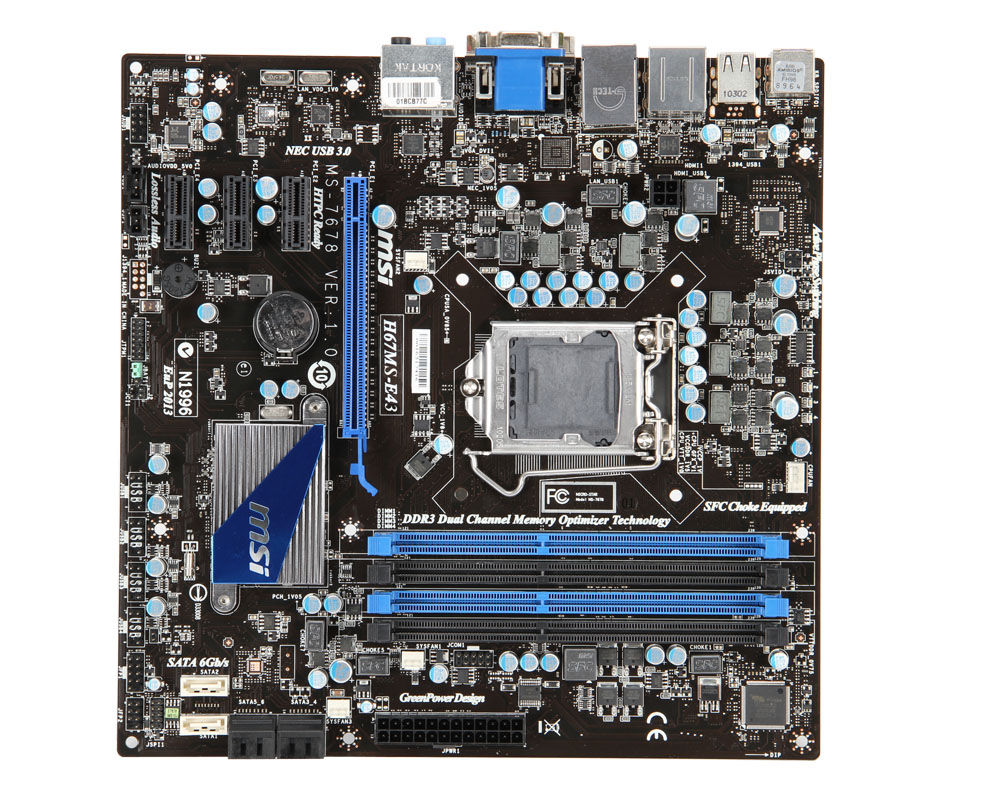

MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX
Brand: MSI · SKU: H67MS-E43 · MPN: H67MS-E43 · Category: Components
MSI H67MS-E43, LGA 1155 (Socket H2), 32 GB, Non-ECC, 1066,1333 MHz, 0, 1, 5, 10, 1024 MB
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Networking features | PCI Express LAN 10/100/1000 Fast Ethernet |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
- Military Class II Concept components: Top quality & stability - OC Genie II: Auto OC to boost performance in 1 sec - ClickBIOS: Easy-to-use UEFI BIOS interface - THX TruStudio PRO: deliver the fullest audio experience for games, music and movies - IGP Supports DirectX 10.1, Shader Model 4.0 and OpenGL 2.0 - Support SATA 6Gb/s. - A high-fidelity sound reproduction standard - Accurately reproduce the fullest audio experience of movie, music and game soundtracks - Instant MB info monitor - Green Power: CPU Phase, system fan speed controlled with max power saving - Smart Mode: 4 instant OC modes - User friendly & totally free applications - Power on to run applications in 25 seconds - Multi-language interface support - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU. - Saving Power under Variable Loading. - Power Usage More Efficiency. - Support next-generation SATAIII, up to 6Gbps bandwidth - Double the data transfer rate of SATAII (3Gbps) - Universal charger utility for Apple iPad, iPhone, iPod - Compatible with all MSI Mainboards - Supports 1080 Full-HD multimedia playback - A perfect connection to HD visual effects - Better casual gaming experience with DirectX 10 support - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
Key Features
MSI H67MS-E43. Processor socket: LGA 1155 (Socket H2). Maximum internal memory: 32 GB, ECC сompatibility: Non-ECC, Supported memory clock speeds: 1066,1333 MHz. RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 1024 MB. LAN controller: Realtek RTL8111E, Networking features: PCI Express LAN 10/100/1000 Fast Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX (H67MS-E43) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H67MS-E43.
