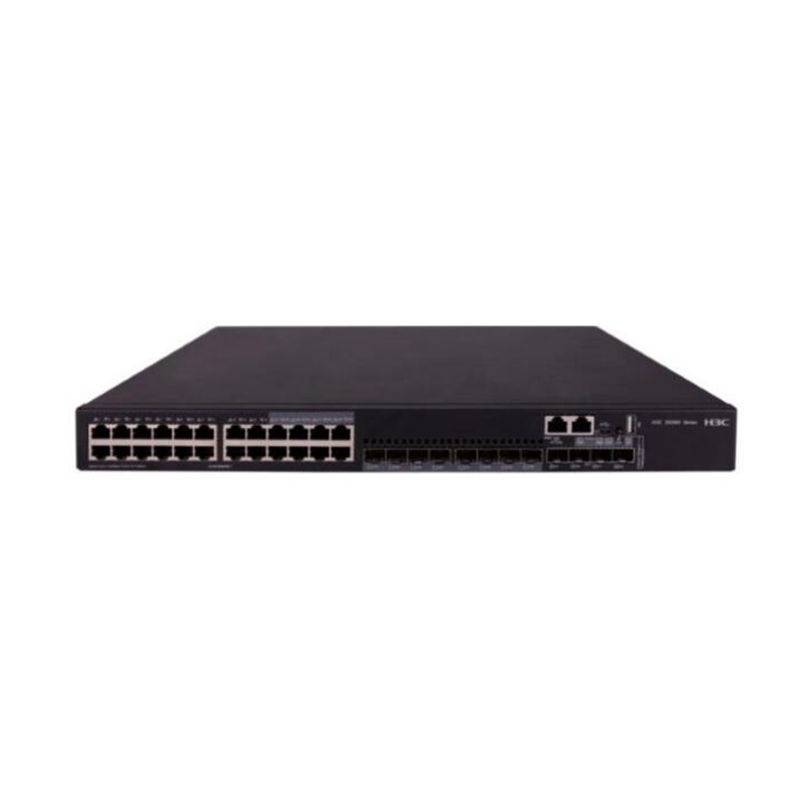

S5560X-30C-EI, H3C S5560X Switch, 24xGE/4x10GE SFP+/1xExpansion Slot

SKU: H3C:S5560X-30C-EI · MPN: H3C:S5560X-30C-EI · Category: Networking

S5560X-30C-EI, H3C S5560X Switch, 24xGE/4x10GE SFP+/1xExpansion Slot
Request for Quote
In Stock • 10 units

H3C S5560X-30C-EI L3 Ethernet Switch(24GE(8SFP Combo)+4SFP Plus+1Slot),No Power

View Transceivers & Optics Products

Specifications

CPUDual Core, 800MHz
ItemS5560X-30C-EI
Weight≤ 6.7 kg (14.77 lb)
MTBF(Year)178.67
MTTR(Hour)1
Flash/SDRAM1GB/2GB
Console ports1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
Service ports24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces) 4 × 10G SFP+ ports
Expansion slots1
AC input voltagePSR150-A1&PSR150-A2: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
DC input voltagePSR150-D1: Rated: –48 VDC to –60 VDC Max: –36 VDC to –72 VDC You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A).
Storage temperature-40℃ to 70℃(-40℉ to 158℉)
Operating temperature-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with transmission distance ≥ 10km)
Box switching capacity598Gbps
Max. power consumptionSingle AC input: 87 W Dual AC inputs: 91 W Single DC input: 88 W Dual DC inputs: 95 W
Min. power consumptionSingle AC input: 24 W Dual AC inputs: 29 W Single DC input: 24 W Dual DC inputs: 28 W
Packet forwarding rate216 Mpps
Port switching capacity288Gbps
Management Ethernet ports1
Compatible interface module2-port 40GE QSFP+ interface module 2-port 10G SFP+ interface module 2-port 25G SFP28 interface module 2-Port 10G BASE-T Interface Card with MACSec 2-Port 10G SFP Plus Interface Card with MACSec 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module
Operating &storage humidity5% RH to 95% RH, non-condensing
Dimensions (H × W × D)43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this S5560X-30C-EI, H3C S5560X Switch, 24xGE/4x10GE SFP+/1xExpansion Slot (H3C:S5560X-30C-EI) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This S5560X-30C-EI, H3C S5560X Switch, 24xGE/4x10GE SFP+/1xExpansion Slot includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the S5560X-30C-EI, H3C S5560X Switch, 24xGE/4x10GE SFP+/1xExpansion Slot compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H3C:S5560X-30C-EI.
