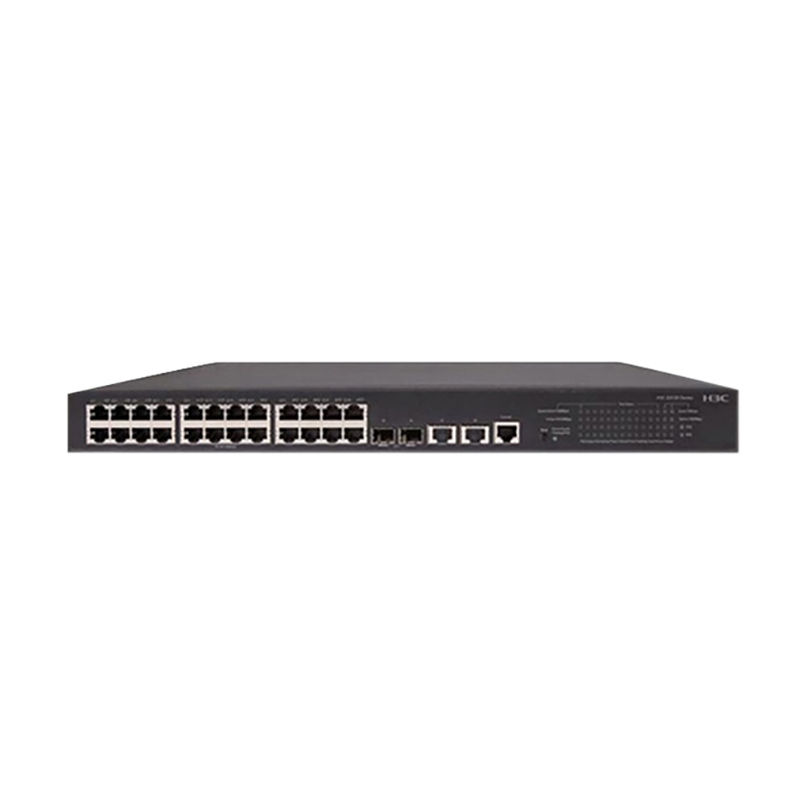

S5130S-28S-HPWR-EI, H3C S5130S Series L2 Ethernet Switch, 24x1G PoE+ / 4xSFP Combo / 4x10G SFP+
SKU: H3C:S5130S-28S-HPWR-EI · MPN: H3C:S5130S-28S-HPWR-EI · Category: Networking
H3C S5130S-28S-HPWR-EI-AC L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports (AC 370W), 4*100/1000BASE-X SFP Combo Ports, and 4*1G/10G BASE-X SFP Plus Ports,(AC)
Specifications
| CPU | 1 Core, 800MHz |
|---|---|
| Weight | ≤ 4.5kg |
| Fan NUM | 3 |
| SFP+ Port | 4 |
| MTBF(Year) | 85.69 |
| MTTR(Hour) | 1 |
| Flash/SDRAM | 256MB/512MB |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Forwarding Capacity | 96Mpps |
| Storage Temperature | -40℃ ~ 70℃ |
| Maximum Stacking Num | 9 |
| Operating Temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Box Switching Capacity | 336Gbps |
| 10/100/1000 Base-T Port | 24 (4*SFP combo) |
| Port Switching Capacity | 128Gbps |
| Latency (64byte/µs) | GE: < 5µs 10GE < 3µs |
| Maximum Stacking Bandwidth | 80Gbps |
| Dimensions(W× D×H) | 440×260×43.6 mm |
| Power Consumption(full configuration) | MIN: AC: 16W MAX: AC: 445W（PoE 370W） |
| Operating & Storage Relative Humidity(noncondensing) | 5% ~ 95% |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S5130S-28S-HPWR-EI, H3C S5130S Series L2 Ethernet Switch, 24x1G PoE+ / 4xSFP Combo / 4x10G SFP+ (H3C:S5130S-28S-HPWR-EI) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S5130S-28S-HPWR-EI, H3C S5130S Series L2 Ethernet Switch, 24x1G PoE+ / 4xSFP Combo / 4x10G SFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S5130S-28S-HPWR-EI, H3C S5130S Series L2 Ethernet Switch, 24x1G PoE+ / 4xSFP Combo / 4x10G SFP+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H3C:S5130S-28S-HPWR-EI.
