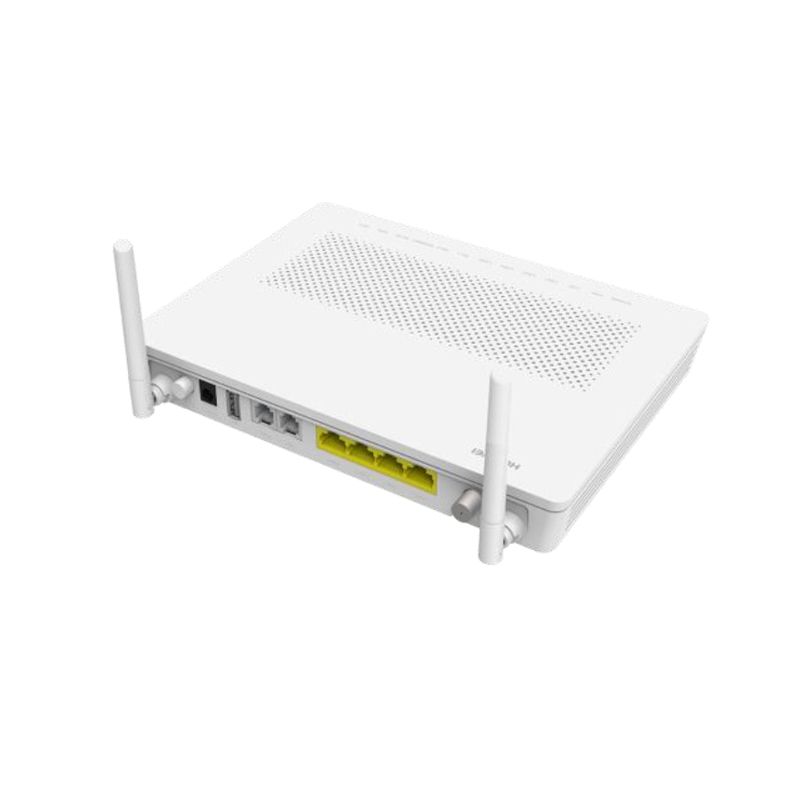

H35M8247HAU1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, AU Adapter
Brand: Huawei · SKU: H35M8247HAU1 · MPN: H35M8247HAU1 · Category: Components
Broadband Network Terminal,EchoLife HG8247H,GPON Terminal,SC/APC,CATV,Australian Standard Adapter,English
Specifications
| QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation |
|---|---|
| WLAN | • IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS |
| Model | H35M8247HAU1 |
| Ports | 2POTS+4GE+CATV+Wi-Fi+USB |
| Weight | 1000 kg |
| Security | • SPI firewall • Filtering based on MAC/IP/URL addresses |
| USB Port | • USB2.0 • FTP-based network storage |
| CATV Port | • Bandwidth 54-870MHz • Output resistance 75 ohms |
| GPON Port | • Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA |
| Multicast | • IGMP v2/v3 proxy(V300R015C00) /snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi |
| POTS Port | • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| Smart O&M | • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation |
| Common O&M | • OMCI/Web UI/TR069 • Dual-system software backup and rollback |
| Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
| Power Saving | • Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00) |
| Ethernet Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning |
| Smart service | • Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports |
| Layer 3 Features | • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack • Static/Default routes • Multiple services on one WAN port |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50–60 Hz |
| System power supply | 11–13 V DC, 2 A |
| Operating temperature | 0°C to 40°C |
| Smart interconnection | • Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C10) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink |
| Dimensions (H x W x D) | 220mm x 160mm x 32mm (without an external antenna) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this H35M8247HAU1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, AU Adapter (H35M8247HAU1) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This H35M8247HAU1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, AU Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the H35M8247HAU1, Huawei EchoLife HG8247H GPON Terminal, SC/APC, CATV, AU Adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H35M8247HAU1.
