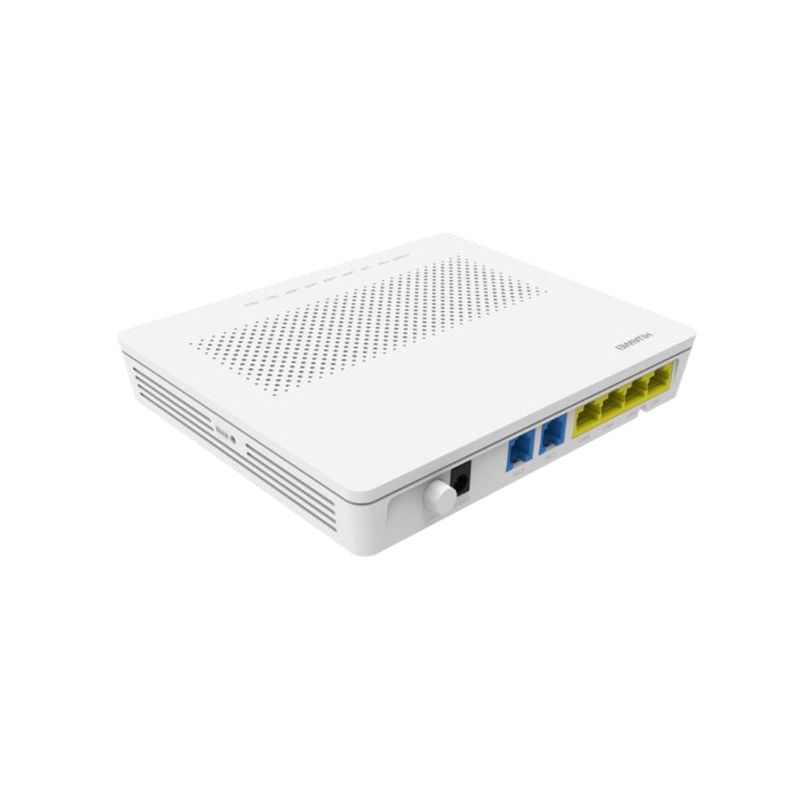

H35M8240HTD1, Huawei HG8240H GPON Terminal, European Standard Adapter/English/SC APC
Brand: Huawei · SKU: H35M8240HTD1 · MPN: H35M8240HTD1 · Category: Components
HG8240H GPON Terminal, European Standard Adapter, English, SC/APC, For TDE
Specifications
| QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p |
|---|---|
| Model | H35M8240HTD1 |
| Ports | 4GE + 2POTS |
| Security | • MAC address filtering |
| GPON Port | • Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA |
| Multicast | • IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation |
| POTS Port | • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| Smart O&M | • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test |
| Common O&M | • OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check |
| Indicators | POWER/PON/LOS/LAN/TEL |
| Power Saving | • Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4 |
| Ethernet Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2 |
| Smart Services | • Association of one account with two POTS ports • L2 forwarding: 1G uplink, 2G downlink |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50–60 Hz |
| System power supply | 11–14 V DC, 0.5 A |
| Operating temperature | 0°C to +40°C |
| Smart interconnection | • SIP/H.248 auto-negotiation |
| Static power consumption | 4W |
| Maximum power consumption | 10W |
| Dimensions (H x W x D) (mm) | 176mm x 138.5mm x 28mm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this H35M8240HTD1, Huawei HG8240H GPON Terminal, European Standard Adapter/English/SC APC (H35M8240HTD1) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This H35M8240HTD1, Huawei HG8240H GPON Terminal, European Standard Adapter/English/SC APC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the H35M8240HTD1, Huawei HG8240H GPON Terminal, European Standard Adapter/English/SC APC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H35M8240HTD1.
