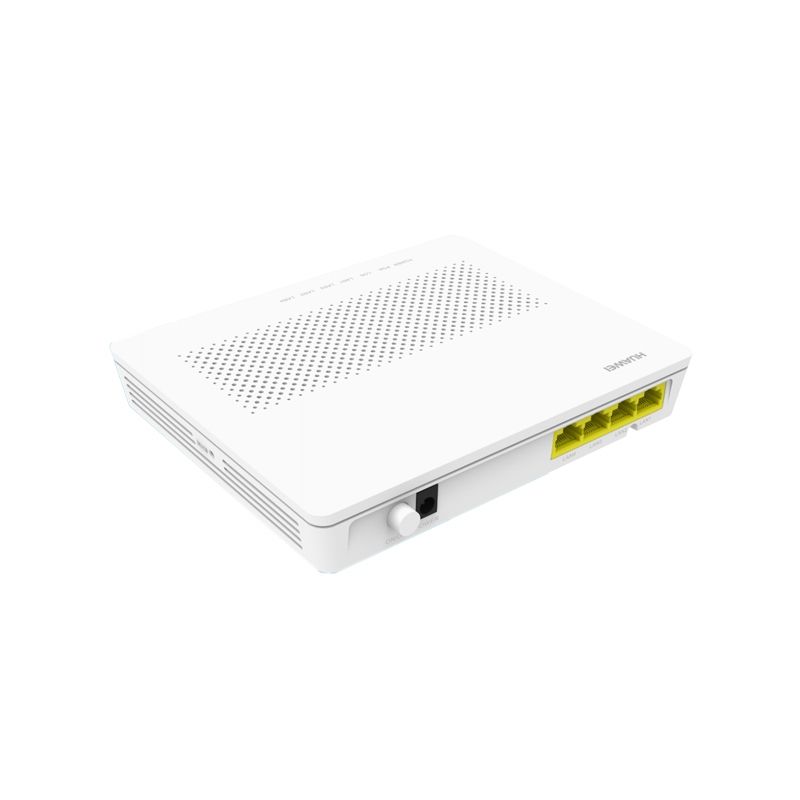

H35M8040HPC1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC

Brand: Huawei · SKU: H35M8040HPC1 · MPN: H35M8040HPC1 · Category: Components

H35M8040HPC1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC
Request for Quote
In Stock • 10 units

HG8040H GPON Terminal, UK Standard Adapter, English, SC/APC

View Components Products

Specifications

QoS• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
ModelH35M8040HPC1
Ports4GE
Security• MAC address filtering
GPON Port• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Multicast• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation
Smart O&M• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing
Common O&M• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check
IndicatorsPOWER/PON/LOS/LAN
Power Saving• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4
Ethernet Port• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2
Operating humidity5% RH to 95% RH (non-condensing)
Power adapter input100–240 V AC, 50–60 Hz
System power supply11–14 V DC, 1 A
Operating temperature0°C to +40°C
Smart interconnection• L2 forwarding: 1G uplink, 2G downlink
Static power consumption4W
Maximum power consumption7.5W
Dimensions (H x W x D) (mm)176mm x 138.5mm x 28mm
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this H35M8040HPC1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC (H35M8040HPC1) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This H35M8040HPC1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the H35M8040HPC1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H35M8040HPC1.
