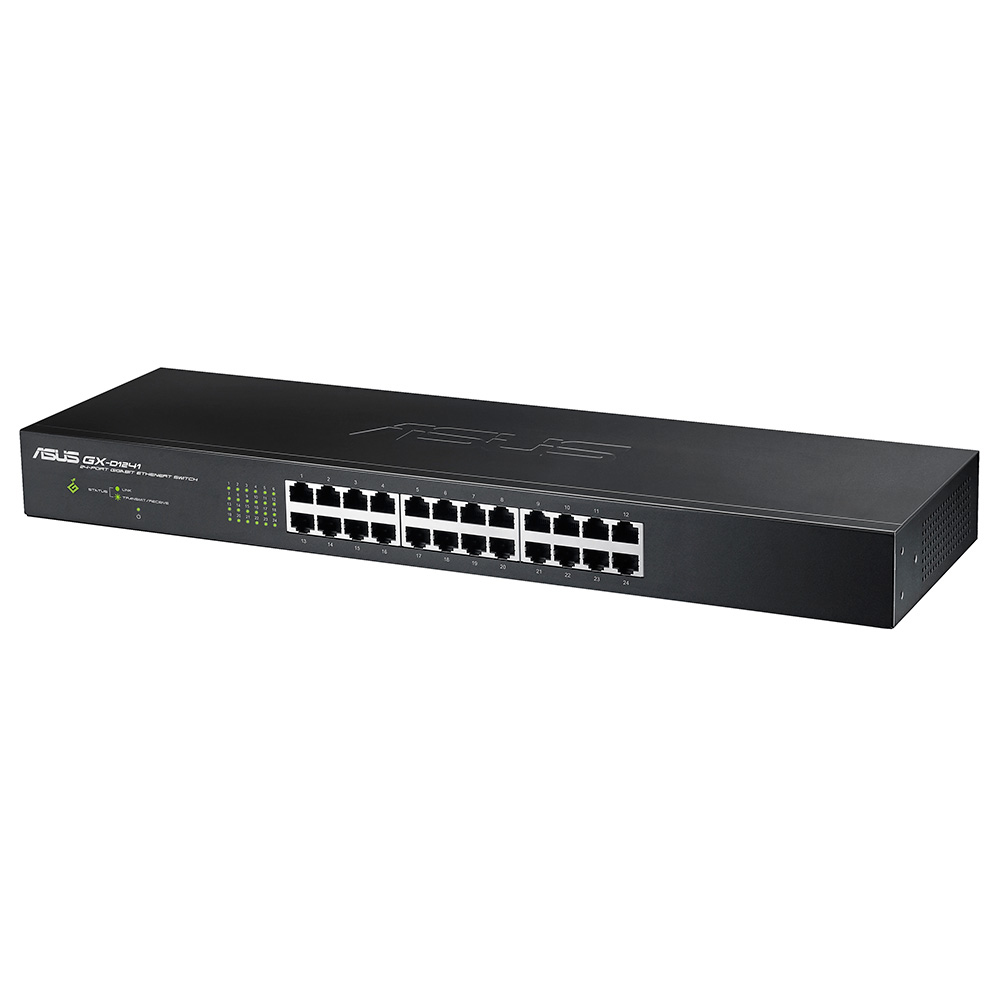

ASUS GX-D1241 V3 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Brand: ASUS · SKU: GX-D1241 V3 · MPN: GX-D1241 V3 · Category: Networking
ASUS GX-D1241 V3, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting. ASUS GX-D1241 V3 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black (part number GX-D1241 V3) is an enterprise switches product available from Server Tech Central. Key specifications include depth 110 mm, width 430 mm, height 44 mm, weight 2.04 kg, 10g support No, full duplex Yes, switch type Unmanaged, rack mounting Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 110 mm |
|---|---|
| Width | 430 mm |
| Height | 44 mm |
| Weight | 2.04 kg |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Rack mounting | Yes |
| Product colour | Black |
| AC input voltage | 110 - 240 V |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 19.82 W |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Warranty | 3-Year Warranty |
| Weight | 2.04 kg |
| Dimensions | 430 mm x 110 mm x 44 mm |
Product Description
- Simple to use: No software needed for configuration—which makes installations easier and faster. - Jumbo Frame up to 9KB: Supporting bigger package size on the IC and providing a much better and efficent networking throughput. - Green Network (802.3az EEE)- Embedded energy conservation through link down standby mode and cable length detection, save up to 55% power consumption Full network supervision with 24-port LED indicators The GX-D1241 provides 10/100/1000 Mbps auto-sensing connectivity for Gigabit speed internet access; without the need of software for configuration—which makes installations easier and faster. The Asus Green Network features an embedded energy conservation through link down standby mode and cable length detection allowing users save up to 55% power consumption respectively. The fan-less design eliminates noise, which helps maintain a peaceful environment in the office; while its small in size, the great performance and rich features provide a cost-effective connection for small-to-medium enterprises and power users. Through Asus Green Network Technology (802.3az EEE), the GX-D1241 switches can detect when PCs is turned off and will respond accordingly by powering down into standby mode significantly reducing power consumption up to 55%. During switch or network loops, ASUS helps you troubleshoot issues with convenient LED indicators. These show you which ports are looping, so you can address the issue and prevent your entire network from crashing. GX Series Unmanaged Switch SOHO/SMB Solution The fan-less design eliminates noise, which helps maintain a peaceful environment in the office, the great performance and rich features provide a cost-effective connection for small-to-medium enterprises and power users. 19" Rack-mountable Placement Easy 3-step to mount your switch on a 19'' rack saves your space around the office.
Key Features
ASUS GX-D1241 V3. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS GX-D1241 V3 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black (GX-D1241 V3) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS GX-D1241 V3 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS GX-D1241 V3 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GX-D1241 V3.
