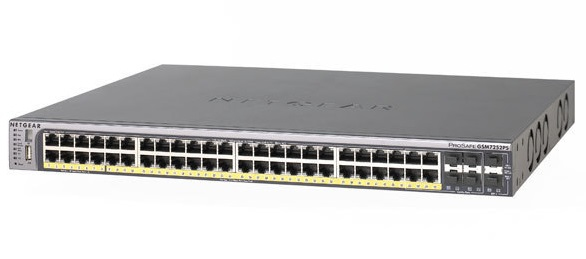

NETGEAR GSM7252PS Managed L2+ Power over Ethernet (PoE)
Brand: Netgear · SKU: GSM7252PS-100NAS · MPN: GSM7252PS · Category: Components
NETGEAR GSM7252PS, Managed, L2+, Full duplex, Power over Ethernet (PoE), Rack mounting
Specifications
| Wi-Fi | No |
|---|---|
| Safety | CE, CSA, UL |
| Weight | 6.3 kg |
| Stackable | Yes |
| IP routing | Yes |
| 10G support | Yes |
| Full duplex | Yes |
| MIB support | RFC 1724, 1850, 2096, 2787 |
| Noise level | 44 dB |
| Switch type | Managed |
| Switch layer | L2+ |
| VLAN support | Yes |
| Certification | FCC, CE |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Input voltage | 100 - 240 V |
| Rack mounting | Yes |
| Port mirroring | Yes |
| Input frequency | 50 - 60 Hz |
| Power connector | DC-in jack |
| Processor model | PowerPC MPC8633 |
| SSH/SSL support | Yes |
| Link aggregation | Yes |
| System event log | Yes |
| Warranty | 3-Year Warranty |
| Weight | 6.3 kg |
| Dimensions | 440 x 391 x 42 mm |
Product Description
NETGEAR Stackable, PoE Managed Gigabit Switches GSM7228PS and GSM7252PS allow the most fl exible and easy-to-deploy Gigabit Power over Ethernet infrastructure. All the 24 and 48 ports of 10/100/1000 Mbps interfaces support 802.3af PoE standard with a comfortable 384 Watts total budget. The fi rst 8 ports support high power 802.3at PoE+, with up to 30 Watts per port. Four (SFP) Gigabit interfaces provide optional fi ber connectivity for longer reach Gigabit Ethernet requirements. Two built-in 10 Gigabit Ethernet SFP+ interfaces on the front, reserved for network uplinks or servers and storage devices, and two 10 Gigabit module bays on the rear, permitting both uplinks and local/distant stacking, provide versatile 10 Gigabit deployment possibilities. Enterprise-class L2+ Combining superior resiliency, enterprise-class security and non-blocking performance, NETGEAR Stackable PoE Managed Gigabit Switches GSM7228PS and GSM7252PS offer a full set of Layer 2 management features, as well as Layer 2+ (Layer 3 lite – IPv4 routing) with unsurpassed affordability. Together with VLAN routing, voice-class prioritization, and chassis-like stack even with local or distant non-PoE Layer 3 Gigabit Managed Switches GSM7328S / GSM7352S / GSM7328FS, the GSM7228PS and GSM7252PS series can be deployed at enterprise edge, remote branch offi ces and closer to the core of small and medium businesses' growing networks. L3 Scalability Layer 3 license upgrades GSM7228PL and GSM7252PL unlock IPv4/IPv6 dynamic routing capabilities of GSM7228PS and GSM7252PS. Designed for Enterprise networks and core/aggregation levels of SMB networks, L3 upgraded GSM7228PS and GSM7252PS provide advanced routing protocols such as OSPF, VRRP and multicast for converged applications. High Availability NETGEAR Stackable, PoE Managed Gigabit Switches GSM7228PS and GSM7252PS come with a removable power module for the main power supply. In the event of a power supply failure, the switch can immediately shift to an external RPS device while the internal power module is replaced for 100% uptime. Like all NETGEAR ProSafe Managed Switches, the GSM7228PS and GSM7252PS are backed by the NETGEAR ProSafe Lifetime Warranty.
Key Features
NETGEAR GSM7252PS. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries, Switching capacity: 192 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"For Server Fleet Uniformity, using verified parts like the GSM7252PS-100NAS prevents downtime and maintains the service integrity expected by Field Engineers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR GSM7252PS Managed L2+ Power over Ethernet (PoE) (GSM7252PS-100NAS) is 100% genuine Netgear hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR GSM7252PS Managed L2+ Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR GSM7252PS Managed L2+ Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GSM7252PS-100NAS.
