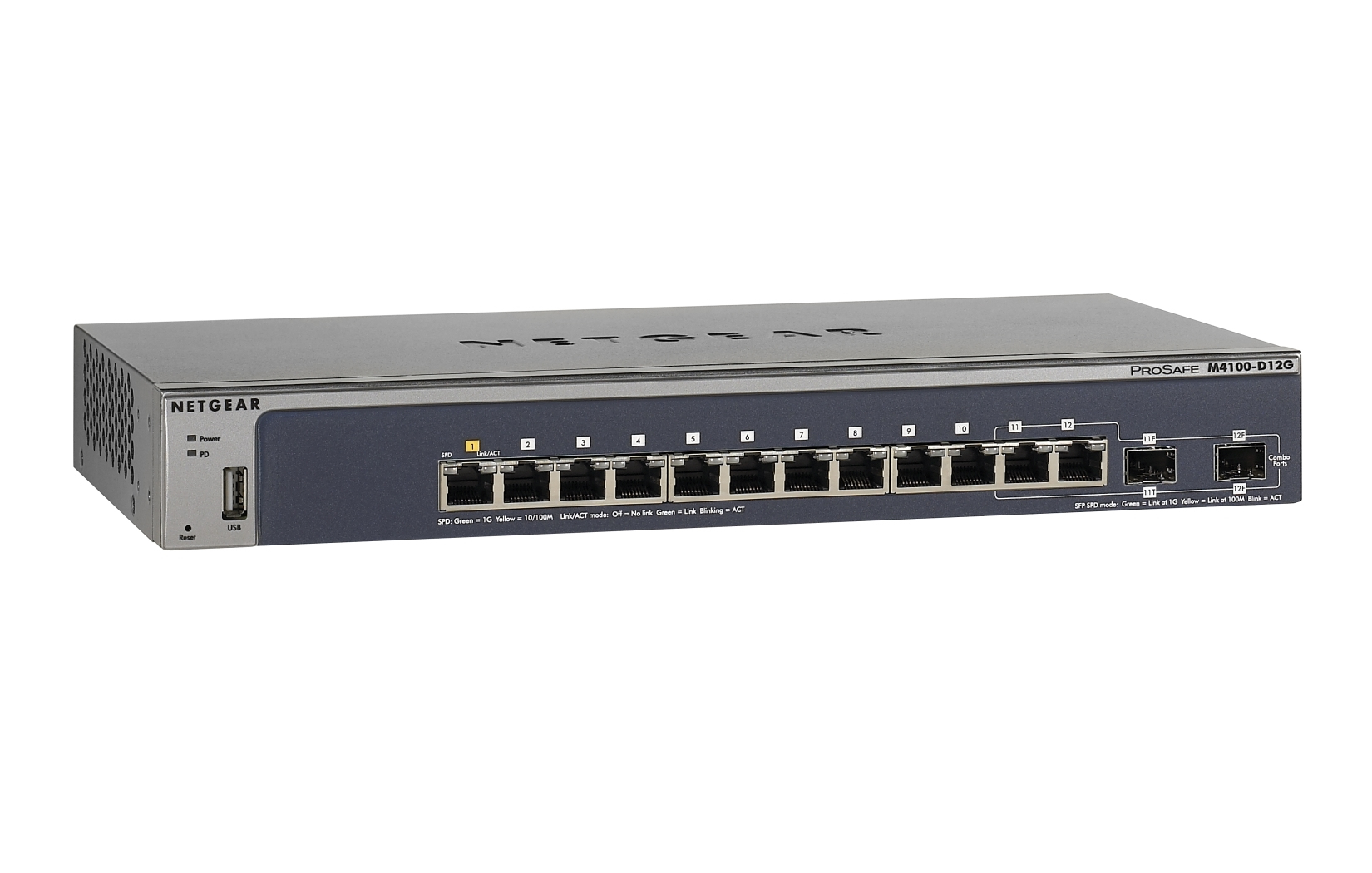

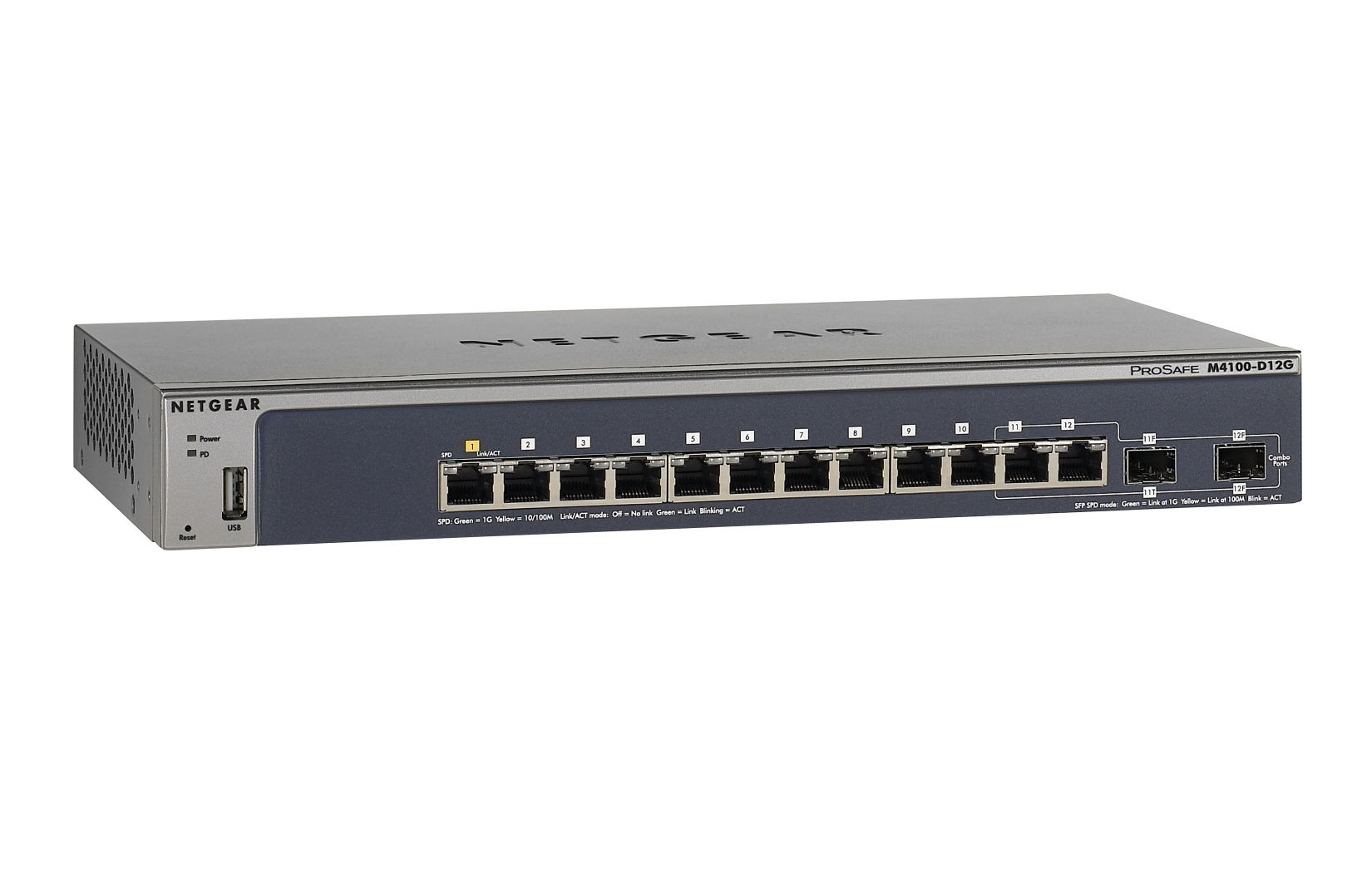

NETGEAR M4100-D12G Managed L2+ Gigabit Ethernet (10/100/1000) Blue, Grey
Brand: Netgear · SKU: GSM5212-100NES · MPN: M4100-D12G · Category: Components
NETGEAR M4100-D12G, Managed, L2+, Gigabit Ethernet (10/100/1000), Rack mounting
Specifications
| Depth | 169 mm |
|---|---|
| Width | 328 mm |
| Height | 43.2 mm |
| Manual | Yes |
| Weight | 1.33 kg |
| Throughput | 17.857 Mpps |
| User guide | Yes |
| 10G support | No |
| Switch type | Managed |
| Switch layer | L2+ |
| VLAN support | Yes |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Product colour | Blue, Grey |
| Power connector | DC-in jack |
| Heat dissipation | 64 BTU/h |
| MAC address table | 16000 entries |
| Multicast support | Yes |
| Quick start guide | Yes |
| Operating altitude | 0 - 3000 m |
| Switching capacity | 24 Gbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Warranty | 3-Year Warranty |
| Weight | 1.33 kg |
| Dimensions | 328 mm x 169 mm x 43.2 mm |
Product Description
The NETGEAR Intelligent Edge M4100 series consists of 12 fully managed switches, ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing. As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments. Layer 2+ with static routing - M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions - L3 fixed routes to the next hop towards the destination network are added to the routing table - L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4) Engineered for convergence - Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol - Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration - Advanced classifier-based hardware for L2, L3, L4 security and prioritization - Advanced Multicast filtering with IGMP and MLD snooping and querier modes High-value performance and IPv6 ready - 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet - IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ) High availability and PoE/PoE+ full power capability - Redundant power supply option for uninterruptible operation (RPS) - External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W) Industry standard management - Industry standard command line interface (CLI) - Fully functional NETGEAR web interface (GUI)
Key Features
NETGEAR M4100-D12G. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Power connector: DC-in jack. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR M4100-D12G Managed L2+ Gigabit Ethernet (10/100/1000) Blue, Grey (GSM5212-100NES) is 100% genuine Netgear hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR M4100-D12G Managed L2+ Gigabit Ethernet (10/100/1000) Blue, Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR M4100-D12G Managed L2+ Gigabit Ethernet (10/100/1000) Blue, Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GSM5212-100NES.
