Brand: Cisco · SKU: GLC-SX-MMD · MPN: GLC-SX-MMD · Category: Components

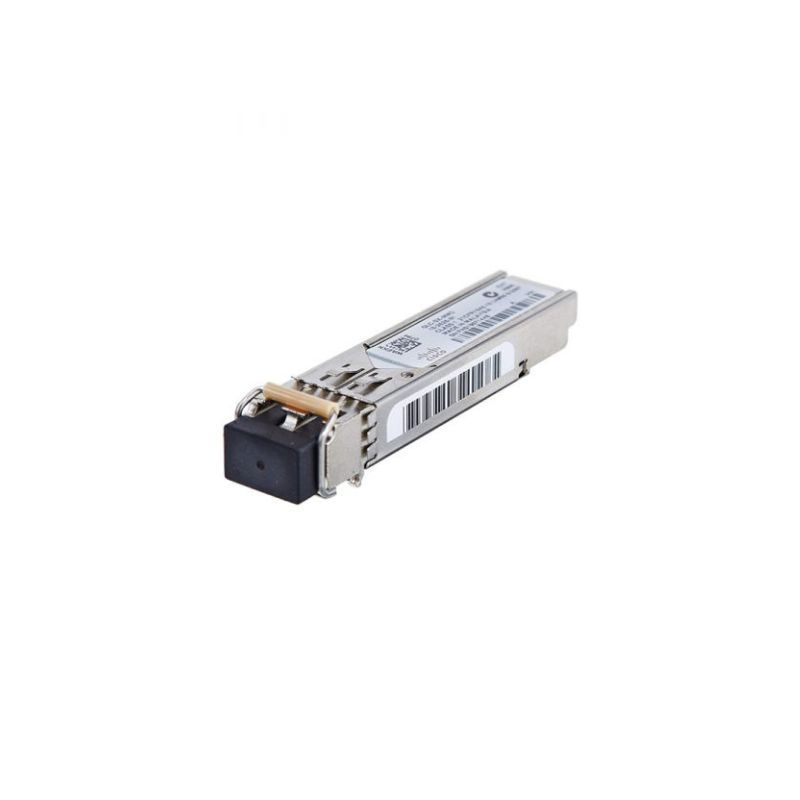

The Cisco GLC-SX-MMD 1000BASE-SX SFP is a Small Form-Factor Pluggable (SFP) transceiver module designed for 1 Gigabit Ethernet uplink connectivity. It is an improved version of the previous GLC-SX-MM, featuring Digital Optical Monitoring (DOM) functionality and an extended temperature range. This module supports hot-swappable installation, allowing devices to be added or removed without powering them down. DOM capability provides real-time diagnostics for monitoring signal strength, temperature, and transceiver supply voltage. The transceiver can tolerate an extended temperature range of 23°F to 185°F. It is compatible with various Cisco switches and routers, including ASA5500 Series Appliances, ASR routers, Catalyst switches, and more. The module operates at an 850nm wavelength and is intended for multimode fiber (MMF) only, supporting distances up to 550 meters over 50 µm multimode fiber, up to 220 meters over 62.5 µm FDDI-grade multimode fibers, and up to 1km over laser-optimized 50
| MTBF | 3,381,761 hours |
|---|---|
| Features | Digital Optical Monitoring (DOM) support, Hot swap module replacement |
| Cable Type | Ethernet 1000Base-SX |
| Fiber Type | Multi Mode Fiber (MMF) |
| Form Factor | Plug-In Module |
| Manufacturer | Cisco Systems |
| Product Line | Cisco |
| Product Type | SFP (mini-GBIC) transceiver module |
| Connector Type | LC |
| Shipping Weight | 0.1 lbs |
| Warranty Period | 3-year limited warranty |
| Packaged Quantity | 1 |
| Power Consumption | Less than 1 Watt |
| Data Transfer Rate | 1 GBps |
| Interface Provided | 1 x Ethernet 1000Base-SX - LC/PC multi-mode x 2 |
| Operating Humidity | 5-95% RH |
| Compliant Standards | IEEE 802.3ah, IEEE 802.3z |
| Data Link Protocols | Gigabit Ethernet |
| Optical Wave Length | 850 nm |
| Shipping Dimensions | 0.70 x 3.10 x 5.70 in. |
| Max Transfer Distance | 0.6 miles |
| Left Connector SD Type | LC/PC multi-mode |
| Connectivity Technology | Wired |
| Distance (50/125µm MMF) | 550 m |
| Warranty | Lifetime limited warranty |
| Weight | 2.65 oz |
| Dimensions | 0.3 inch (H) x 0.5 inch (W) x 2.2 inch (D) |
The Cisco GLC-SX-MMD is a 1000BASE-SX SFP transceiver module designed for multi-mode fiber (MMF) applications. It supports data transfer rates of up to 1.25 Gbps and operates at an 850nm wavelength. The module is capable of reaching distances of up to 550 meters over 50 µm multimode fiber, up to 220 meters over 62.5 µm FDDI-grade multimode fibers, and up to 1km over laser-optimized 50 µm multimode fiber cable. Key features include hot-swappable installation, Digital Optical Monitoring (DOM) for real-time diagnostics, and an extended operating temperature range. It utilizes an LC duplex connector for connectivity.
