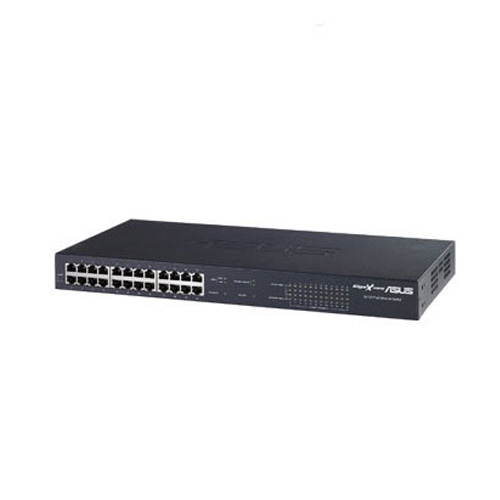

ASUS GigaX 1024i Managed Black
Brand: ASUS · SKU: GIGAX 1024I · MPN: GIGAX 1024I · Category: Components
Specifications
| Safety | UL1950, TUV |
|---|---|
| Weight | 2.2 kg |
| Stackable | Yes |
| Switch type | Managed |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Power connector | DC-in jack |
| Connectivity LEDs | Y |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 444 x 200 x 44 mm |
| Switching capacity | 8.8 Gbit/s |
| Data link protocols | Ethernet, Fast Ethernet |
| Management platform | Asus CNM |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Packet transfer speed | 6.6 Mpps |
| Connectivity technology | Wired |
| Electromagnetic emissions | FCC Part 15 Class A, CE Mark, CCC, GOST |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 12 W |
| Warranty | 3-Year Warranty |
| Weight | 2.2 kg |
Product Description
Special Advantages - Port based VLANs - Recognize Cos and Qos priority queues - Asus switches discovery - Topology map - Port status monitoring - Graphic statistic charts show traffic comparison or history and monitor ports - Link aggregation up to 7 Trunk groups Non-blocking Wire-speed Architecture Ensures the maximum performance for every port on your ASUS switch, thus maximizing Network performance and productivity Extra secure posts on mounting brackets Extra posts on our mounting brackets provide extra support for Switch mounting Fan-less Design Protect the peace and quiet of your working environment with our fan-less design switches Auto negotiation and auto MDI/MDIX Automatically detects and adjusts for speed and duplex state Auto MDI/MDIX allows you to use either straight-thru or crossover cables whether you are connecting to PCs or uplinking to another switch Easy to Read Diagnostic LEDs Easily obtain connection link status, speed information on the Informative LEDs of the switches CNM management software Provides advanced management capabilities Easily configure advanced management features as: Port speed and duplex; VLANs; Link Aggregation; CoS and QoS Prioritization; Broadcast and Multicast filtering; Bandwidth Control; View history
Key Features
ASUS GigaX 1024i. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS GigaX 1024i Managed Black (GIGAX 1024I) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS GigaX 1024i Managed Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS GigaX 1024i Managed Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GIGAX 1024I.
