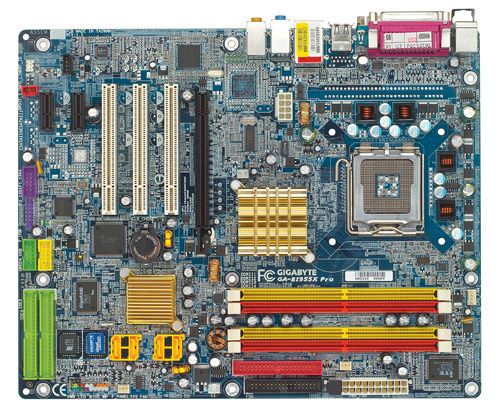

GIGABYTE GA-8I955X Pro LGA 775 (Socket T) ATX
Brand: GIGABYTE · SKU: GA8I955X PRO · MPN: GA8I955X PRO · Category: Components
GIGABYTE GA-8I955X Pro, Intel, LGA 775 (Socket T), 8 GB, T.I IEEE1394b, ATX, Realtek ALC882. GIGABYTE GA-8I955X Pro LGA 775 (Socket T) ATX (part number GA8I955X PRO) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, i/o ports 4 x Line-out/ 1 x Line-in/ 1 x MIC, audio chip Realtek ALC882, microphone in Yes, controller type T.I IEEE1394b, expansion slots 1 PCI Express x 16 2 PCI Express x 1 3 PCI, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| I/O ports | 4 x Line-out/ 1 x Line-in/ 1 x MIC |
| Audio chip | Realtek ALC882 |
| Microphone in | Yes |
| Controller type | T.I IEEE1394b |
| Expansion slots | 1 PCI Express x 16 2 PCI Express x 1 3 PCI |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 1 |
| RAID controller type | GigaRAID ITE8212 IDE |
| Manageability features | DualBIOS C.I.A. 2 M.I.B. 2 R.G.B. |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of COM connectors | 1 |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Floppy disk drive connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Native support for DDR2 888 GIGABYTE engineers’ passion of diving deep into new technologies, and have successfully break the barrier of DDR2 frequency and reached DDR2 888. With higher memory frequency means larger memory bandwidth for executing intensive applications in greater performance. Intelligent Data Protection Highly advanced Intel® Matrix Storage technology allows RAID 0 (Striping), RAID 1 (Mirroring), RAID 0+1 (Striping and Mirroring), and RAID 5 (Parity RAID) multi-disk designs to be created by the user depending on their preference for protection or performance. Step on to high speed connectivity The high-speed Gigabit Ethernet for LAN connection speed of up to 1,000 Mb/s, allows internet activities such as online gaming or watching streaming videos without delays. As well the onboard Firewire (IEEE1394b) delivers high-speed data thru-put of up to 800Mb/s, enhances PC connectivity for consumer electronics A/V appliances, storage peripherals and portable devices. CPU Intelligent Accelerator 2 With GIGABTYE C.I.A 2 technology, users are able to enjoy the benefits of overclocking without having too much trouble of manually adjustment. C.I.A. 2 provides reasonable and acceptable overclocking options for user to select, all what user need to do is to select the desirable overclocking level and the rest environment settings are automatically setup by the BIOS. Memory Intelligent Booster 2 Designed to maximize memory performance and boost memory bandwidth by optimizing data transmission among CPU, north bridge chipset and memory. The innovative GIGABYTE M.I.B. 2 technology shortens memory latency time and enhances system performance without sacrificing stability. Intel® High Definition Audio Intel® High Definition Audio enables premium digital sound in the PC for an immersive surround sound experience. In addition, Intel® HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms. GigaRAID IDE RAID Controller Supporting RAID (0, 1, 0+1), JBOD function and ATA133 interface, GigaRAID Controller delivers completely solution for storage interface to increase fault tolerance, improve data access performance and provides additional interface for more IDE devices.
Key Features
GIGABYTE GA-8I955X Pro. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB, Controller type: T.I IEEE1394b. Motherboard form factor: ATX, Audio chip: Realtek ALC882, Power source type: ATX. Width: 305 mm, Depth: 244 mm. Expansion slots: 1 PCI Express x 16 2 PCI Express x 1 3 PCI
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-8I955X Pro LGA 775 (Socket T) ATX (GA8I955X PRO) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-8I955X Pro LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-8I955X Pro LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA8I955X PRO.
