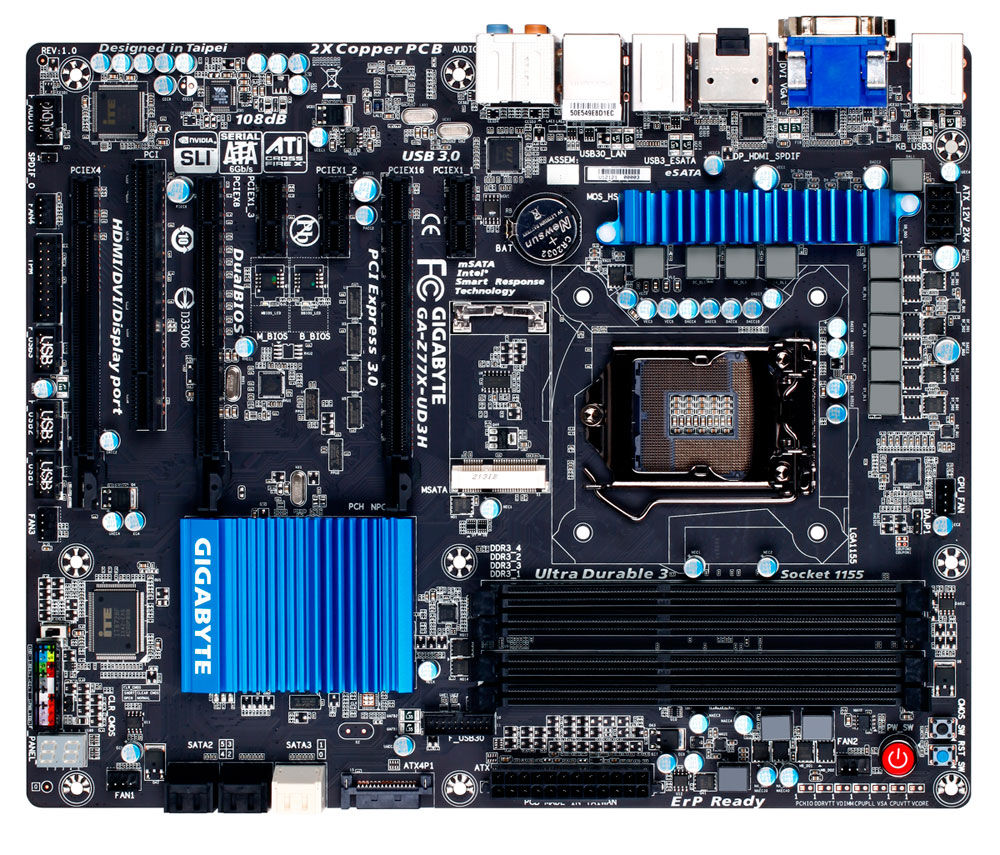

GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX
Brand: GIGABYTE · SKU: GA-Z77X-UD3H-WB · MPN: GA-Z77X-UD3H-WB · Category: Components
GIGABYTE GA-Z77X-UD3H-WB, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 32 GB, DIMM. GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX (part number GA-Z77X-UD3H-WB) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, wi-fi Yes, width 305 mm, bios type EFI AMI, bluetooth Yes, pci slots 1, raid levels 0, 1, 5, 10, acpi version 2.0a. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 305 mm |
| BIOS type | EFI AMI |
| Bluetooth | Yes |
| PCI slots | 1 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bundled software | Norton Internet Security Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology LucidLogix Virtu MVP |
| Processor socket | LGA 1155 (Socket H2) |
| Bluetooth version | 4.0 |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 5 |
| Memory slots type | DIMM |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Exclusive Bluetooth 4.0/WiFi Expansion Card The motherboard also includes an exclusive PCIe expansion card that offers support for the latest Bluetooth 4.0 and IEEE 802.11 b/g/n Wi-Fi connectivity. The Bluetooth 4.0 standard includes Smart Ready technology that is debuting on mobile devices including the Apple® iPhone® 4s. This means that transferring important content from your smart phone or tablet is easier and faster than ever. GIGABYTE Z77 Series Motherboards GIGABYTE 7 series motherboards combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel® Core™ processors. With an exclusive 'Digital' VRM design, GIGABYTE 3D Power and GIGABYTE 3D BIOS (Dual UEFI), GIGABYTE 7 series motherboards ensure exceptional power delivery and absolute control, with additional features that ensure an unrivalled experience on your next PC build. GIGABYTE All Digital Power Engine GIGABYTE Z77 series motherboards take advantage of an exclusive All Digital PWM controller array, to deliver power to the board's 3rd generation Intel® Core™ processor. Using entirely digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. These components include the CPU, VTT, processor graphics and memory, without doubt the most important components on your motherboard. This All Digital Power system, with Precise Auto Voltage Compensation, provides you with exceptional control over the component power delivery on your GIGABYTE 7 series motherboard. GIGABYTE 3D Power: Digital Voltage, Frequency and Phase Control Utilizing an exclusive All Digital controller array, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the system, no matter the loading. With digital controllers for the CPU (Vcore), VTT, processor graphics and memory (DDR), users can make real-time adjustments with the exclusive GIGABYTE 3D Power Utility, that include settings such as OVP (Over Voltage Protection), Load-line Calibration and on-the-fly PWM frequency adjustment. GIGABYTE 3D Power (patent pending) Utility Users can enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock. 3D Power: Voltage Control Voltage parameters can be modified within 3D Power, including load line calibration of the CPU. By adjusting load line calibration, Vdroop can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, IGP, VTT and system memory. 3D Power: Phase Control Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed. 3D Power: Frequency Control GIGABYTE's all digital PWM allows for adjustable frequency control via the International Rectifier PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies. GIGABYTE 3D BIOS (patent pending) The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces. UEFI DualBIOS™ Technology At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems. 3D Mode Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality. Advanced Mode Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and
Key Features
GIGABYTE GA-Z77X-UD3H-WB. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI. Ethernet interface type: Gigabit Ethernet, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX (GA-Z77X-UD3H-WB) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-Z77X-UD3H-WB.
