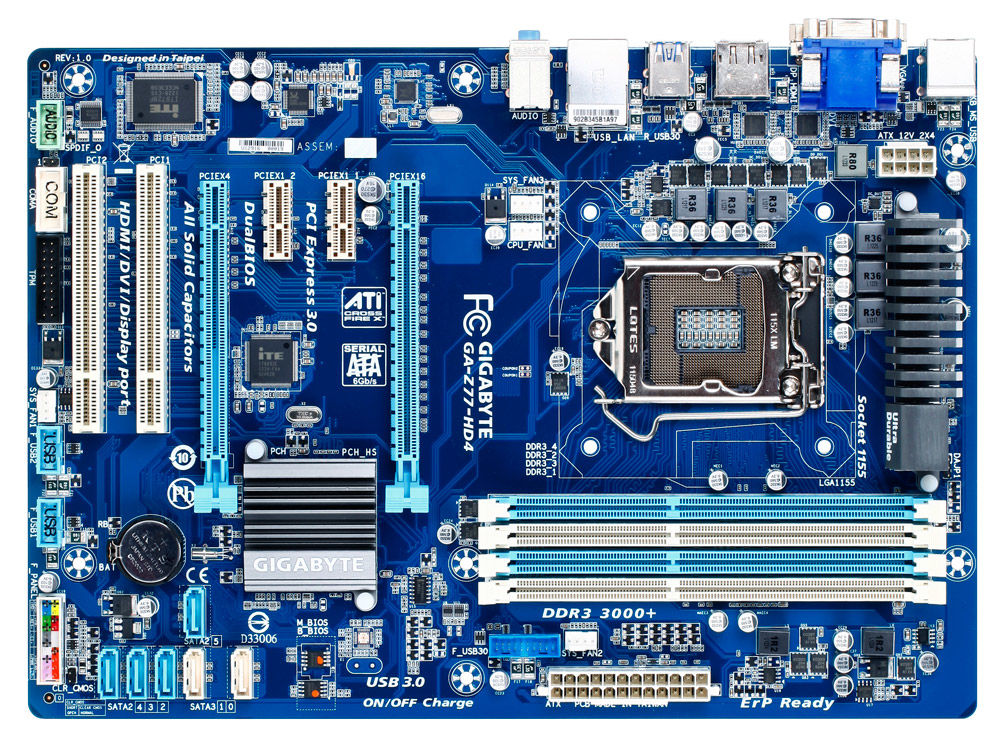

GIGABYTE GA-Z77-HD4 motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX
Brand: GIGABYTE · SKU: GA-Z77-HD4 · MPN: GA-Z77-HD4 · Category: Components
GIGABYTE GA-Z77-HD4, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, i3-3xxx, i5-3xxx, i7-3xxx, DDR3-SDRAM, 32 GB. GIGABYTE GA-Z77-HD4 motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX (part number GA-Z77-HD4) is an enterprise components product available from Server Tech Central. Key specifications include depth 215 mm, width 305 mm, bios type EFI AMI, pci slots 2, audio chip Realtek ALC887, acpi version 2.0a, cooling type Passive, ethernet lan Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 215 mm |
|---|---|
| Width | 305 mm |
| BIOS type | EFI AMI |
| PCI slots | 2 |
| Audio chip | Realtek ALC887 |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Dual Link DVI | Yes |
| Microphone in | Yes |
| TPM connector | Yes |
| Memory voltage | 1.5 V |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 215 mm |
Product Description
- Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket) - GIGABYTE 3D BIOS (Dual UEFI) - PCI Express Gen 3.0 support - 2-way CrossFire™ multi-GPU support - HDMI, Display Port, DVI, RGB - High quality HD audio - GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power) - Humidity/Electrostatic/Power Failure/High Temperature Protection - GIGABYTE On/Off Charge™ for USB devices GIGABYTE Z77-HD4 Motherboard GIGABYTE Z77-HD4 Motherboard combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel® Core™ processors. With an exclusive GIGABYTE 3D BIOS (Dual UEFI), UD4 Classic technology and unique EZ Set Up uilities, GIGABYTE Z77-HD4 Motherboard ensure outstanding system absolute control, with additional features that ensure an unrivalled experience on your next PC build. 3rd Generation Intel® Core™ processors New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most. Designed for PCI Express Gen.3 Support GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions. Intel® Rapid Start Technology Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.
Key Features
GIGABYTE GA-Z77-HD4. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III. Parallel processing technology support: 2-Way CrossFireX, Graphics card family: Intel, Maximum resolution: 2560 x 1600 pixels. Ethernet interface type: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-Z77-HD4 motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX (GA-Z77-HD4) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-Z77-HD4 motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-Z77-HD4 motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-Z77-HD4.
