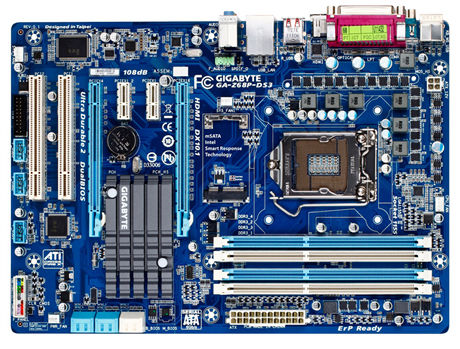

GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Brand: GIGABYTE · SKU: GA-Z68P-DS3 · MPN: GA-Z68P-DS3 · Category: Components
GIGABYTE GA-Z68P-DS3, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 32 GB, DIMM. GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX (part number GA-Z68P-DS3) is an enterprise components product available from Server Tech Central. Key specifications include depth 215 mm, width 305 mm, bios type AWARD, pci slots 2, raid levels 0, 1, 5, 10, acpi version 1.0b, ethernet lan Yes, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 215 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| PCI slots | 2 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 1.0b |
| Ethernet LAN | Yes |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel Z68 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 215 mm |
Product Description
Introduction The GA-Z68P-DS3 motherboard, based on the Intel® Z68 Express Chipset and supporting the new 2nd generation Intel® Core™ processors. Delivering the very best that Intel® 6 series chipsets have to offer, including a significant performance boost with Intel® Smart Response Technology, the first ever mSATA drive connectors on a standard desktop PC motherboard, and GIGABYTE's proprietary Touch BIOS™ technology, GIGABYTE Z68 series motherboards put users in the driver seat, allowing them to take total control over how their system operates and performs to best match their individual computing needs. Onboard mSATA for Intel® SLC SSDs and Smart Response Technology GIGABYTE Z68 series motherboards are equipped with the much anticipated Intel® Smart Response Technology, allowing users to experience system performance similar to SSD only systems. Intel® Smart Response technology works by using intelligent block-based caching of frequently used applications to improve system performance and responsiveness. GIGABYTE Z68 motherboards are equipped with the much anticipated Intel® Smart Response Technology, allowing users to experience system performance similar to SSD-only systems. Intel® Smart Response technology works by using intelligent block-based caching of frequently used applications to improve system performance and responsiveness. In fact, GIGABYTE Z68 motherboards with Intel® Smart Response Technology are able to outperform hybrid drive systems by more than 2X (PC Mark Vantage HDD test) and HDD-only systems by as much as 4X (PC Mark Vantage HDD test) and deliver a 60% performance improvement over HDD-only systems in PC Mark Vantage Suite. Built-in Visuals Built-in Visuals GIGABYTE Z68 motherboards offer support for several 2nd generation Intel® Core™ New 100% Hardware VRD 12 Compliant CPU Power Design GIGABYTE 6 series motherboards incorporate an Intel® approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers new features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller – hence, delivering a more energy efficient platform. 108dB Signal-to-Noise ratio playback GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards. All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.
Key Features
GIGABYTE GA-Z68P-DS3. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Quad-GPU CrossFireX. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: 10/100/1000 Mbps
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX (GA-Z68P-DS3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-Z68P-DS3.
