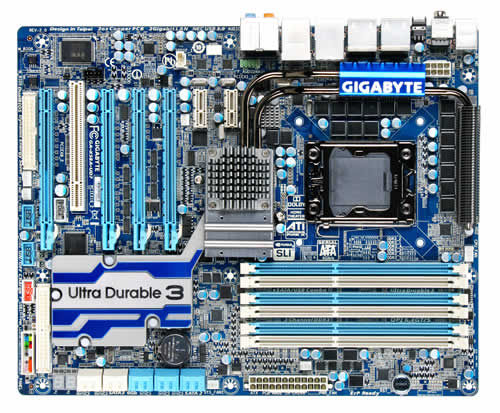

GIGABYTE GA-X58A-UD7 Socket B (LGA 1366) ATX
Brand: GIGABYTE · SKU: GA-X58A-UD7 · MPN: GA-X58A-UD7 · Category: Components
GIGABYTE GA-X58A-UD7, Socket B (LGA 1366), Intel® Core™ i7, 24 GB, 1.5 V, Non-ECC, 800,1066,1333 MHz. GIGABYTE GA-X58A-UD7 Socket B (LGA 1366) ATX (part number GA-X58A-UD7) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, audio output Realtek ALC889, microphone in Yes, memory voltage 1.5 V, s/pdif in port Yes, cd/aux audio in Yes, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| Audio output | Realtek ALC889 |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket B (LGA 1366) |
| Special features | Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 6) Support for Easy Energy Saver Support for Smart Recovery Support for Auto Green Support for ON/OFF Charge Support for Q-Share |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 6.1 channels |
| PCI Express x16 slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Introduction Based on Intel's highest end X58 chipset, the GIGABYTE GA-X58A-UD7 offers a wide range of premium features tailor-made for PC enthusiasts who believe more is never enough. The latest monster performance GA-X58A-UD7 motherboard, featuring a revolutionary new 16 phase Unlocked Power design, 3-way graphics support including Nvidia SLI and ATI CrossFireX, as well as a host of unique GIGABYTE features including 333 Onboard Acceleration and On/Off Charge. GIGABYTE GA-X58A-UD7 motherboards also leverage the success of GIGABYTE’s uniquely developed technologies including the GIGABYTE Ultra Durable™ 3 design, which features 2x the amount of copper of a traditional PCB design, as well as the innovative Smart6™ PC management tools, On/Off Charge for quick anytime iphone charging, Dynamic Energy Saver™ 2 power saving utilities, and DualBIOS technologies. Get Ready to Unleash the Power of 32nm 6 Core CPUs GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming. Intel Core i7 Processor and X58 Chipset support The GA-X58A-UD7 was designed specifically to take advantage of the raw power of the next generation Intel Core i7 processors and the Intel® X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset. Dual Power Switching The industry's first Dual Power Switching design for delivering better durability and longer component lifespan. When Dual Power Switching is activated, 2 sets of 8 power phases operate in tandem, automatically turning on one set of 8 phases and powering down the other 8, allowing the non active set to rest. Dual Power Switching ensures that each set of phases share the power workload, effectively doubling the lifespan of the phases. Maximum CPU Loading When CPU loading requires more than 8 phases to be active, the full 16 power phases are unlocked, allowing for maximum power delivery. For overclockers and power users, this means during maximum loading, all 16 power phases can be activated; ensuring users have the maximum power delivery and maximum durability and power efficiency. USB 3.0 Support The GIGABYTE X58A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE X58A motherboards are Marvell's new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE X58A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. - SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration. - SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. Dynamic Energy Saver 2 GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button. Cloud OC GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based it connects via wireless Internet, Bluetooth or through an Ethernet cable and its many functions are categorized into three tabs: Tuner, System Info and Control...more Cloud OC download Smart 6- A Smarter way for PC system Management GIGABYTE Smart 6 is desig
Key Features
GIGABYTE GA-X58A-UD7. Processor socket: Socket B (LGA 1366), Compatible processor series: Intel® Core™ i7. Maximum internal memory: 24 GB, Memory voltage: 1.5 V, ECC сompatibility: Non-ECC. Motherboard form factor: ATX, Audio output channels: 6.1 channels, Power source type: ATX. BIOS memory size: 32 Mbit. Width: 305 mm, Depth: 244 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-X58A-UD7 Socket B (LGA 1366) ATX (GA-X58A-UD7) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-X58A-UD7 Socket B (LGA 1366) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-X58A-UD7 Socket B (LGA 1366) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-X58A-UD7.
