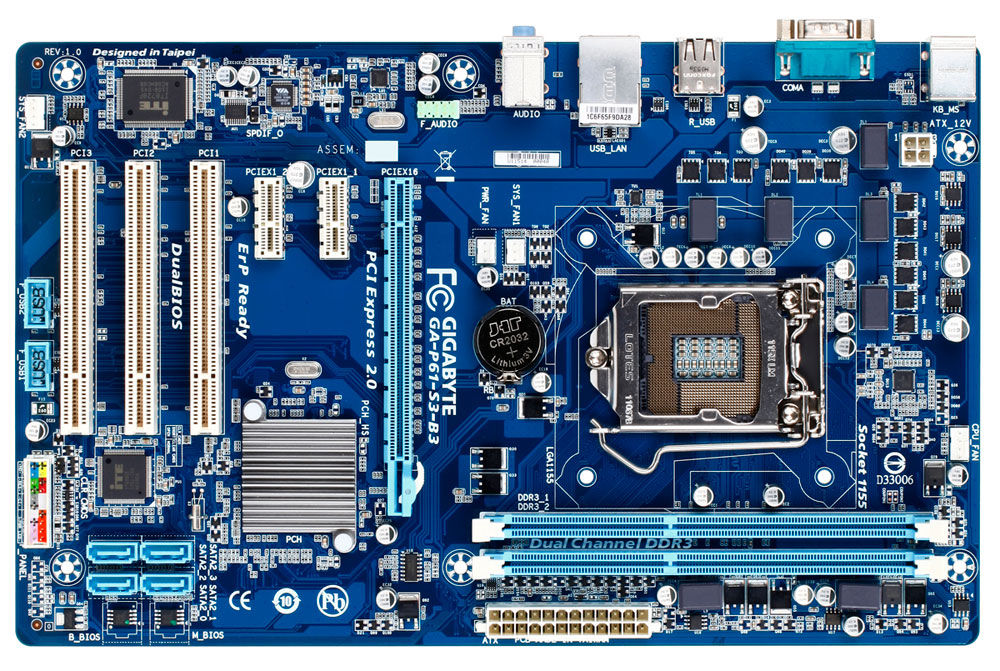

GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
Brand: GIGABYTE · SKU: GA-P61-S3-B3 · MPN: GA-P61-S3-B3 · Category: Components
GIGABYTE GA-P61-S3-B3, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, 16 GB, Dual-channel, 1.5 V. GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX (part number GA-P61-S3-B3) is an enterprise components product available from Server Tech Central. Key specifications include depth 190 mm, width 305 mm, bios type AWARD, pci slots 3, audio chip VIA VT1708, acpi version 1.0b, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 190 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| PCI slots | 3 |
| Audio chip | VIA VT1708 |
| ACPI version | 1.0b |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Atheros AR8151 |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Bundled software | Norton Internet Security |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® H61 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 190 mm |
Product Description
DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology) Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website. GIGABYTE DualBIOS™ is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive. 50,000 Hours All Solid Capacitors GIGABYTE Ultra Durable motherboards are equipped with all solid capacitors. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games. * 50000 hours of work time is calculated at 85℃ ambient temperature. Super Savings GIGABYTE motherboards are equipped with the very best quality components that ensure that you PC is running at maximum power efficiency. Lower RDS(on) MOSFETs reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance. - Lower RDS(on) MOSFETs - Lower CPU Zone Temperature - High Power-Efficiency New 100% Hardware VRD 12 Compliant CPU Power Design GIGABYTE 6 series motherboards incorporate an Intel® approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers new features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller – hence, delivering a more energy efficient platform. Smart 6 – Smarter PC system Management Smart QuickBoot Speeds up booting times. Smart DualBIOS Smart personal reminder of PC passwords. Smart QuickBoost* One-click Overclocking Smart Recorder Your PC's Watch Dog Smart Recovery 2 Allows you to go back in time on your PC and retrieve lost files Smart TimeLock Time Controller for your PC. * Whether SMART QuickBoost is supported depends on the motherboard model. AutoGreen- Greening your PC via Bluetooth cellphone AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth® cell phone is out of range of your computer. Note: GIGABYTE motherboards do not include a Bluetooth® receiver; the addition of a 3rd party Bluetooth receiver is required. ErP Lot 6 support The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
Key Features
GIGABYTE GA-P61-S3-B3. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Maximum internal memory: 16 GB, Memory channels: Dual-channel, Memory voltage: 1.5 V. Ethernet interface type: Gigabit Ethernet, LAN controller: Atheros AR8151. Component for: PC, Motherboard form factor: ATX, Motherboard chipset: Intel® H61. BIOS type: AWARD, BIOS memory size: 64 Mbit, ACPI version: 1.0b
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX (GA-P61-S3-B3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-P61-S3-B3.
