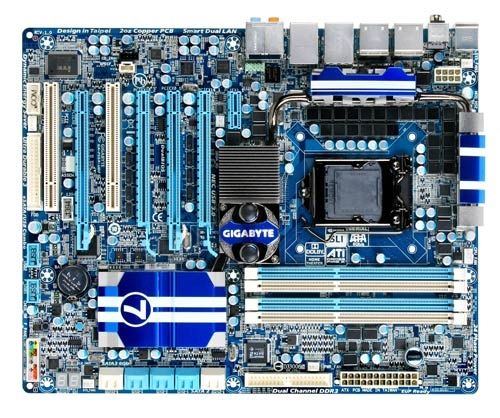

GIGABYTE GA-P55A-UD7 motherboard LGA 1156 (Socket H) ATX
Brand: GIGABYTE · SKU: GA-P55A-UD7 · MPN: GA-P55A-UD7 · Category: Components
GIGABYTE GA-P55A-UD7, Intel, LGA 1156 (Socket H), 1.5 V, Non-ECC, 0, 1, 5, 10, 10/100/1000 Mbit. GIGABYTE GA-P55A-UD7 motherboard LGA 1156 (Socket H) ATX (part number GA-P55A-UD7) is an enterprise components product available from Server Tech Central. Key specifications include depth 24.4 mm, width 30.5 mm, bios type AWARD, audio chip Realtek ALC889, raid levels 0, 1, 5, 10, memory voltage 1.5 V, cd/aux audio in Yes, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 24.4 mm |
|---|---|
| Width | 30.5 mm |
| BIOS type | AWARD |
| I/O ports | Internal: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x IDE connector 3 x system fan headers 1 x Chipset fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 1 x serial port header 1 x clearing CMOS button 1 x power button 1 x reset button |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 5, 10 |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Bundled software | Norton Internet Security (OEM version) |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Graphics controller | 2-Way/3-Way ATI CrossFireX/NVIDIA SLI |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 1 |
| PCI Express x8 slots | 2 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 30.5 mm x 24.4 mm |
Product Description
- Industry leading 24phase power VRM design for optimum power efficiency and thermal solution - Leading quality standard of Ultra Durable™ 3 technology with 2oz copper PCB design - Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps - 3X USB power delivery for greater compatibility and extra power for USB devices - Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed - Support Intel Core i7/ Core i5/ Core i3 processors with LGA 1156 socket - New Dynamic Energy Saver™ 2 technology enables best energy efficiency - Innovative Smart 6 technology for smarter PC management - Supports dual channel DDR3 2600+ memory - 4 PCIe 2.0 graphic interfaces support both 3 way SLI and 3 way CrossFireX - Smart DualLAN with Intelligent LAN port auto-switching - XHD technology accelerating hard drive performance with ease - AutoGreen technology Greening your PC via Bluetooth cellphone. - Patented GIGABYTE DualBIOS™ technology delivering highest level failure protection - Supports Dolby Home Theater audio to create a stunning surround sound listening experience - Hybrid Silent-Pipe design provides unequalled heat conductivity - Onboard debug LED simplifies motherboard troubleshooting - The Precision OV provides more precision voltage control for system - Compatible with Windows 7 to deliver the best operation experience - Meet European Union EuP(Energy-using Products) requirement
Key Features
GIGABYTE GA-P55A-UD7. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Memory voltage: 1.5 V, ECC сompatibility: Non-ECC. RAID levels: 0, 1, 5, 10. Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-P55A-UD7 motherboard LGA 1156 (Socket H) ATX (GA-P55A-UD7) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-P55A-UD7 motherboard LGA 1156 (Socket H) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-P55A-UD7 motherboard LGA 1156 (Socket H) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-P55A-UD7.
