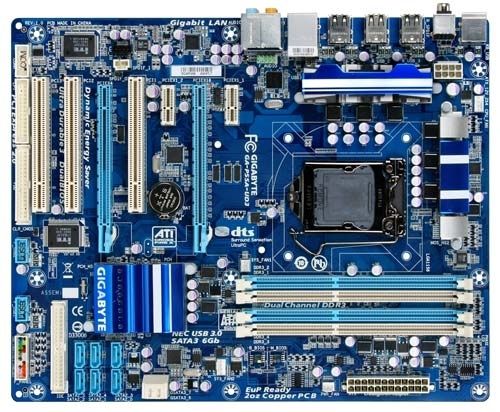

GIGABYTE GA-P55A-UD3 motherboard Intel® P55 LGA 1156 (Socket H) ATX
Brand: GIGABYTE · SKU: GA-P55A-UD3 · MPN: GA-P55A-UD3 · Category: Components
GIGABYTE GA-P55A-UD3, Intel, LGA 1156 (Socket H), 16 GB, 1.5 V, Non-ECC, 0, 1, 10. GIGABYTE GA-P55A-UD3 motherboard Intel® P55 LGA 1156 (Socket H) ATX (part number GA-P55A-UD3) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, pci slots 3, audio chip Realtek ALC888, raid levels 0, 1, 10, microphone in Yes, memory voltage 1.5 V, s/pdif in port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 3 |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 10 |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | LGA 1156 (Socket H) |
| Special features | @BIOS Q-Flash Xpress BIOS Rescue Download Center Xpress Install Xpress Recovery2 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® P55 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
USB 3.0 Support The GIGABYTE P55A-series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE P55A motherboards are Marvell’s new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE P55A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. 3x USB Power Boost GIGABYTE P55A-series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Key Features
GIGABYTE GA-P55A-UD3. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB, Memory voltage: 1.5 V, ECC сompatibility: Non-ECC. RAID levels: 0, 1, 10. Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Motherboard chipset: Intel® P55, Audio output channels: 7.1 channels
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-P55A-UD3 motherboard Intel® P55 LGA 1156 (Socket H) ATX (GA-P55A-UD3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-P55A-UD3 motherboard Intel® P55 LGA 1156 (Socket H) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-P55A-UD3 motherboard Intel® P55 LGA 1156 (Socket H) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-P55A-UD3.
