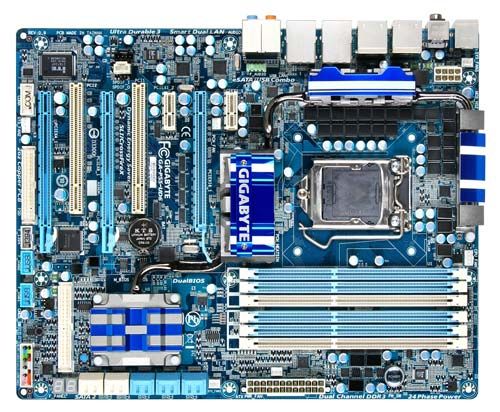

GIGABYTE GA-P55-UD6 (rev. 1.0) Intel® P55 LGA 1156 (Socket H) ATX

Specifications

Product Description

Introduction The GA-P55-UD6 is based on Intel's innovative 2-chip architecture and supports the next generation Intel® Core™ i7 and Intel® Core™ i5 processors with LGA1156 package. With integrated graphics and memory controllers in the processor, the GA-P55-UD6 is able to support up to 6 DIMMs of dual channel DDR3 memory for remarkable memory performance. The GA-P55-UD6 features the revolutionary 24 phase power VRM design that provides the very best power delivery to the CPU, giving extreme users unparalleled overclocking ability and the lowest temperatures to reach maximum performance levels. With support for NVIDIA SLI™ and ATI CorssFireX™ technology, the GA-P55-UD6 also delivers powerful graphics performance. The GA-P55-UD6 enables a new level of smart computing with its Smart 6 technologies. Designed with user-friendliness in mind, GIGABYTE Smart 6 features a combination of 6 innovative software utilities that provide easy and intelligent PC system management. Coupled with the unique GIGABYTE Dynamic Energy Saver2™ and Ultra Durable3™ technologies, the GA-P55-UD6 provides outstanding performance with optimized power efficiency and durability. 24 phase power- World's Best Phase Power Design Industry's First 24 Phase Power VRM Design GIGABYTE's cutting edge 24 phase power VRM design utilizes the highest caliber components to provide unadulterated, smooth power delivery for the CPU. Like a high performance sports car engine, GIGABYTE's 24 phase power design enables the best delivery of power to supercharge your system, giving extreme users unparalleled overclocking ability and the lowest temperatures to reach maximum performance levels. The innovative 24 phase power VRM has been designed and engineered to deliver fast transient response times through quick and seamless power delivery during extensive CPU loading variations. In addition, heat from the VRM is effectively reduced by spreading the load between the 24 power phases, resulting in a cooler and more stable platform. On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. Ultra Durable 3 GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking. Smart 6- A Smarter way for PC system Management GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button. Smart Dual LAN GIGABYTE Smart Dual LAN technology features intelligent LAN port auto-switching between the 2 physical Gigabit LAN chips; offering hassle free, zero downtime, high speed network connectivity. Dynamic Energy Saver™ 2 GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans. Cloud OC GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control. Hotkey OC GIGABYTE Hotkey OC allows users to create and save various profiles that can be adopted for different benchmarks. Hotkey OC then allows users to jump between these profiles on the fly so that the best profile for each segment within the benchmark can be used to optimize scores and boost overall performance. For example, when running 3DMark 06, the 1st profile might be optimized for graphics, and can be used for the first two graphics tests, then, the next two tests can utilize the 2nd profile which might be optimized for CPU tests, and one could jump back to t

Key Features

GIGABYTE GA-P55-UD6 (rev. 1.0). Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, RAID levels: 0, 1. Ethernet interface type: Gigabit Ethernet, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
