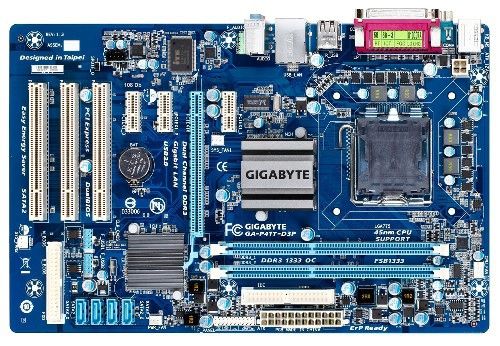

GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX
Brand: GIGABYTE · SKU: GA-P41T-D3P · MPN: GA-P41T-D3P · Category: Components
GIGABYTE GA-P41T-D3P, Intel, LGA 775 (Socket T), Intel® Celeron®, Intel® Pentium®, 800,1066,1333 MHz, 4 GB, Dual-channel. GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX (part number GA-P41T-D3P) is an enterprise components product available from Server Tech Central. Key specifications include depth 194 mm, width 305 mm, bios type AWARD, pci slots 3, audio chip Realtek ALC892, acpi version 1.0b, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 194 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| PCI slots | 3 |
| Audio chip | Realtek ALC892 |
| ACPI version | 1.0b |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security OEM |
| Drivers included | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® G41 |
| Networking features | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 194 mm |
Product Description
GIGABYTE was the first motherboard manufacturer to realize the importance of using only the highest quality components for the critically important CPU VRM zone of the motherboard which is responsible for delivering stable power to the CPU. The GIGABYTE Ultra Durable 2 design utilizes All Solid Capacitors manufactured in Japan which are rated to last for at least 50,000 hours in operational use. GIGABYTE Ultra Durable 2 motherboards also feature Ferrite Core Chokes with higher energy efficiency compared to more common iron core chokes and Lower RDS(on) MOSFETs which feature lower resistance, i.e. reduced power consumption and heat. Some motherboards in this segment feature the GIGABYTE Ultra Durable 2 Classic design, which features All Solid Japanese manufactured Capacitors and Lower RDS(on) MOSFETs. GIGABYTE has further improved on the CPU VRM area by increasing the power phases from 3 to a 4 phase design. This allows for more stable power delivery to the CPU, as well as help smooth out power ripple and noise which is important for clean CPU power delivery. DualBIOS 3TB+ HDD Support (Hybrid EFI Technology) DualBIOS 3TB+ HDD SupportHybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website. GIGABYTE DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive. 108dB Signal-to-Noise ratio playback GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards. All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. GIGABYTE leading technology-Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with Intel’s highly efficient 45nm CPU’s, Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance. SATA 3Gb/s storage interface SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations. Gigabit LAN connectivity The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents. ErP Lot 6 support The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
Key Features
GIGABYTE GA-P41T-D3P. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Maximum internal memory: 4 GB, Memory channels: Dual-channel, Memory voltage: 1.5 V. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset: Intel® G41. BIOS type: AWARD, BIOS memory size: 16 Mbit, ACPI version: 1.0b
