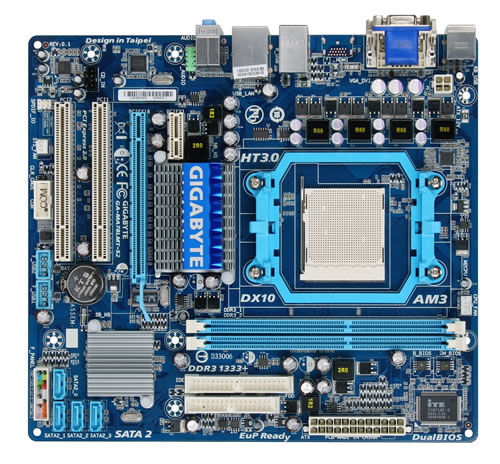

GIGABYTE GA-MA78LMT-S2 motherboard AMD 760G Socket AM3 micro ATX
Brand: GIGABYTE · SKU: GA-MA78LMT-S2 · MPN: GA-MA78LMT-S2 · Category: Components
GIGABYTE GA-MA78LMT-S2, AMD, Socket AM3, AMD Phenom II X6, DDR3-SDRAM, DIMM, 1.5 V. GIGABYTE GA-MA78LMT-S2 motherboard AMD 760G Socket AM3 micro ATX (part number GA-MA78LMT-S2) is an enterprise components product available from Server Tech Central. Key specifications include depth 220 mm, width 243 mm, bios type AWARD, pci slots 2, audio chip Realtek ALC888B, ethernet lan Yes, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 220 mm |
|---|---|
| Width | 243 mm |
| BIOS type | AWARD |
| PCI slots | 2 |
| Audio chip | Realtek ALC888B |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Memory slots type | DIMM |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Motherboard chipset | AMD 760G |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 243 mm x 220 mm |
Product Description
Introduction GA-MA78LMT-S2 offers high performance platform based on AMD 760G chipset, it is integrated ATI Radeon HD 3000 (DX10) graphics engine and supports AMD AM3 Phenom II/ Phenom/ Athlon processors, HyperTransport™ 3.0 technology links, DDR2 memory, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA78LMT-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. EC AOD-ACC Support EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to overclock through BIOS setting further than it was previously possible. Supports Dual Channel DDR3 1333+ Experience the advanced technology of DDR3 1333+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
Key Features
GIGABYTE GA-MA78LMT-S2. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Phenom II X6. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Memory voltage: 1.5 V. Supported storage drive interfaces: SATA II. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Networking features: 10/100/1000 Mbps. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
