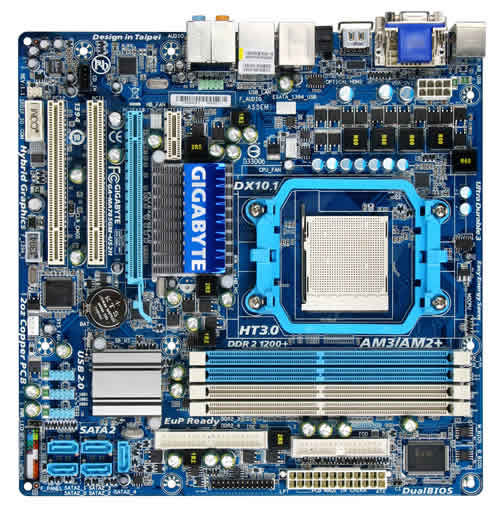

GIGABYTE GA-MA785GM-US2H AMD 785G Socket AM3 micro ATX
Brand: GIGABYTE · SKU: GA-MA785GM-US2H · MPN: GA-MA785GM-US2H · Category: Components
GIGABYTE GA-MA785GM-US2H, AMD, Socket AM3, 1.8 V, Realtek RTL8111C, 10/100/1000 Mbps, micro ATX. GIGABYTE GA-MA785GM-US2H AMD 785G Socket AM3 micro ATX (part number GA-MA785GM-US2H) is an enterprise components product available from Server Tech Central. Key specifications include depth 243 mm, width 243 mm, bios type AWARD, pci slots 2, audio chip Realtek ALC889A, microphone in Yes, lan controller Realtek RTL8111C, memory voltage 1.8 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 243 mm |
|---|---|
| Width | 243 mm |
| BIOS type | AWARD |
| PCI slots | 2 |
| Audio chip | Realtek ALC889A |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111C |
| Memory voltage | 1.8 V |
| CD/AUX audio in | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 785G |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 243 mm x 243 mm |
Product Description
Introduction The GA-MA785GM-US2H introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 785G chipset, GA-MA785GM-US2H is integrated ATI Radeon HD 4200 (DX10.1) graphics engine and supports AMD Phenom quad-core processors, DDR2 memory modules, HyperTransport 3.0 technology links, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA785GM-US2H is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. Dual Channel DDR2 1200+ MHz Delivering native support for DDR2 memory up to 1200MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
Key Features
GIGABYTE GA-MA785GM-US2H. Processor manufacturer: AMD, Processor socket: Socket AM3. Memory voltage: 1.8 V. LAN controller: Realtek RTL8111C, Networking features: 10/100/1000 Mbps. Motherboard form factor: micro ATX, Motherboard chipset: AMD 785G, Audio output channels: 7.1 channels. BIOS type: AWARD, BIOS memory size: 16 Mbit
