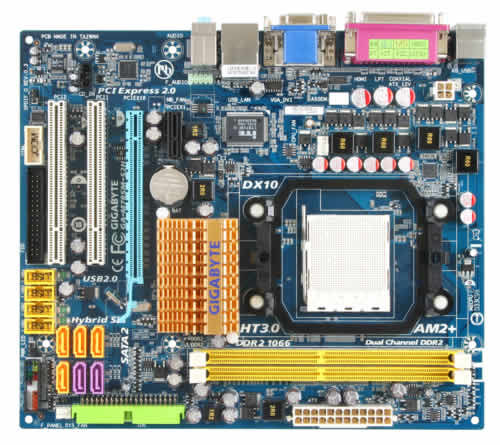

GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX
Brand: GIGABYTE · SKU: GA-M78SM-S2H · MPN: GA-M78SM-S2H · Category: Components
GIGABYTE GA-M78SM-S2H, AMD, Socket AM2, 8 GB, 1.8 V, 10/100/1000 Mbit, micro ATX. GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX (part number GA-M78SM-S2H) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 244 mm, audio chip Realtek ALC888, microphone in Yes, memory voltage 1.8 V, s/pdif in port No, trial software Norton Internet Security, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC888 |
| Microphone in | Yes |
| Memory voltage | 1.8 V |
| S/PDIF in port | No |
| Trial software | Norton Internet Security |
| CD/AUX audio in | Yes |
| Expansion slots | 2 x PCI |
| S/PDIF out port | Yes |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| USB 2.0 connectors | 12 |
| HDMI ports quantity | 1 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 210 mm |
Product Description
NVIDIA GeForce 8200 chipset - Supports AMD Phenom / Athlon series processors. - Solid capacitors design for CPU VRM.0 - Dual Channel DDR2 1066 for remarkable system performance. - Integrated NVIDIA Lumenex™ Engine. - Ultimate graphics performance with PCI-E 2.0 x16 interface with NVIDIA Hybrid SLI support. - Integrated SATA 3Gb/s with RAID function. - Features high speed Gigabit Ethernet. - Integrated 6/8 Channel High Definition audio. - Integrated HDMI/ DVI interface with HDCP.
Key Features
GIGABYTE GA-M78SM-S2H. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, Memory voltage: 1.8 V. Networking features: 10/100/1000 Mbit. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888. Width: 244 mm, Depth: 210 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX (GA-M78SM-S2H) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-M78SM-S2H.
