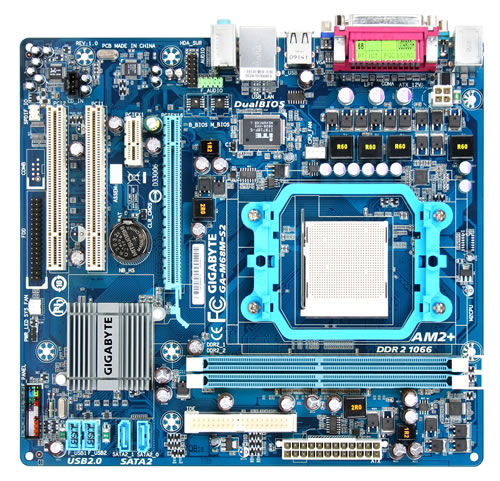

GIGABYTE GA-M68M-S2 (rev. 1.0) Socket AM2 micro ATX
Brand: GIGABYTE · SKU: GA-M68M-S2 · MPN: GA-M68M-S2 · Category: Components
GIGABYTE GA-M68M-S2 (rev. 1.0), AMD, Socket AM2, 8 GB, 667,800,1066 MHz, Realtek RTL8201CL, Fast Ethernet. GIGABYTE GA-M68M-S2 (rev. 1.0) Socket AM2 micro ATX (part number GA-M68M-S2) is an enterprise components product available from Server Tech Central. Key specifications include depth 225 mm, width 244 mm, pci slots 2, audio chip Realtek ALC883, acpi version 1.0, microphone in Yes, lan controller Realtek RTL8201CL, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 225 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC883 |
| ACPI version | 1.0 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8201CL |
| CD/AUX audio in | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | Fast Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 225 mm |
Product Description
GIGABYTE Technology latest S series motherboards for AMD, features Gigabyte's latest design innovations; Smart and Safe Technologies. The new S series motherboard, GA-M68M-S2, has dual channel DDR2 1066MHz supporting high frequency memories provides reliable and user friendly computing by easily reaching maximum system performance via personalized software settings. GIGABYTE S series motherboards, the champion's choice for the latest AMD platform! Supports next generation of 45nm AMD AM3 CPU AMD AM3 CPU 45nm Ready! This motherboard features Split Power Plane, 3+1 phase VRM to support AMD's latest 45nm AM3 Athlon II/ Phenom II series processors, delivering greater performance enhancements and the ultimate in hardware scalability. Smart The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features! Safe Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC! NVIDIA GeForce 7025 / NVIDIA nForce 630a GPU The brand new NVIDIA® GeForce 7025 / NVIDIA® nForce 630aGPU features CineFX™ 3.0 Engine. This unique combination of 7025 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback. PCI Express Interface Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices. Dual Channel DDR2 1066 MHz Experience the advanced technology of DDR2 1066 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. SATA 3Gb/s & RAID This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility. High Definition Audio Experience home theater-quality sound with your PC using High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability. DualBIOS™ - Patented Dual Hardware BIOS Protection DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. Windows® 7 WHQL Certified The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards.
Key Features
GIGABYTE GA-M68M-S2 (rev. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, Supported memory clock speeds: 667,800,1066 MHz. LAN controller: Realtek RTL8201CL, Networking features: Fast Ethernet. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC883. BIOS memory size: 16 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-M68M-S2 (rev. 1.0) Socket AM2 micro ATX (GA-M68M-S2) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-M68M-S2 (rev. 1.0) Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-M68M-S2 (rev. 1.0) Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-M68M-S2.
