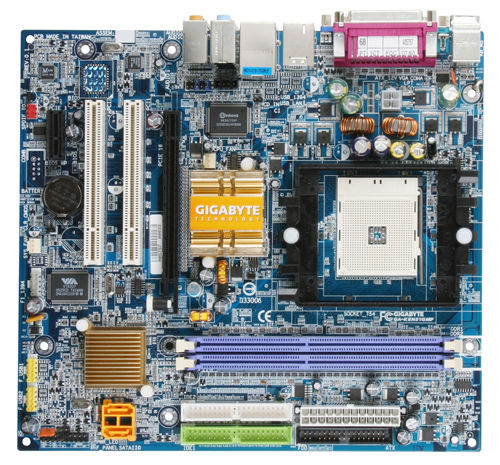

GIGABYTE GA-K8N51GMF motherboard Socket 754 micro ATX
Brand: GIGABYTE · SKU: GA-K8N51GMF · MPN: GA-K8N51GMF · Category: Components
GIGABYTE GA-K8N51GMF, AMD, Socket 754, 2 GB, VIA VT 6307 IEEE1394, Ethernet/Fast Ethernet, micro ATX. GIGABYTE GA-K8N51GMF motherboard Socket 754 micro ATX (part number GA-K8N51GMF) is an enterprise components product available from Server Tech Central. Key specifications include depth 220 mm, width 244 mm, i/o ports 4 x Line-out/ 1 x Line-in/ 1 x MIC, audio chip Realtek ALC850, controller type VIA VT 6307 IEEE1394, expansion slots 1 x PCI-Express X16 1 x PCI-Express X1 2 x PCI, processor socket Socket 754, power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 220 mm |
|---|---|
| Width | 244 mm |
| I/O ports | 4 x Line-out/ 1 x Line-in/ 1 x MIC |
| Audio chip | Realtek ALC850 |
| Controller type | VIA VT 6307 IEEE1394 |
| Expansion slots | 1 x PCI-Express X16 1 x PCI-Express X1 2 x PCI |
| Processor socket | Socket 754 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | Ethernet/Fast Ethernet |
| PS/2 ports quantity | 1 |
| S/PDIF out connector | Yes |
| Manageability features | NVIDIA Firewall NVIDIA RAID 0,1 Norton Internet Security Download Center Xpress Installation Xpress Recovery 2 |
| Number of memory slots | 2 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 1 |
| Maximum internal memory | 2 GB |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Number of SATA connectors | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Floppy disk drive connector | Yes |
| Number of IEEE1394 connectors | 1 |
| Number of chassis fan connectors | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 220 mm |
Product Description
Powered by the innovative NVIDIA GeForce™ 6100 GPU and nForce™410 MCP, GA-K8N51GMF provides unparalleled graphics features and cutting-edge security in a low profile case. The NVIDIA GeForce 6100 GPU delivers ultra-realistic graphics effects, unmatched multimedia functionality, and the performance you expect for an incredible PC experience. The advanced NVIDIA nForce410 MCP delivers cutting-edge technology such as RAID and MediaShield™ storage, 10/100 Ethernet, and SATA 3Gb/s to this platform. Coupled with the remarkable performance available from AMD Athlon64 technology and the board's extensive functionality, GA-K8N51GMF delivers best value to desktop platform in home & office environments. AMD Athlon™64 / Sempron Processor The leading-edge performance and unparallel technology of the 8th generation AMD Athlon™64 processor has built its strength on the well-known AMD64 framework which consisted of 64-bit computing platform, HyperTransport Technology, and integrated memory controller. With improved HyperTransport interface and DDR400, the innovative processor design ensures superior performance on mission critical business applications. NVIDIA GeForce 6100 GPU The brand new NVIDIA 6100 GPU features CineFX™ 3.0 Engine. This unique combination of 6100 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback. NVIDIA® PureVideo™ NVIDIA PureVideo DVD decoder software delivers optimal picture clarity, smooth video, and precise image scaling for all video content in home theater applications. Integrated DDR memory controller The AMD AthlonTM 64 processor improves the memory performance by integrating a DDR memory controller into the processor. By running at the processor's core frequency, an integrated memory controller greatly increases bandwidth directly available to the processor at significantly reduced latencies. PCI Express Interface Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices. SATA 3Gb/s & RAID This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA RAID allows multi-disk designs to be set up as RAID 0,1 based on users’ priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility. NVIDIA Firewall Support NVIDIA Firewall protects your PC from intruders by filtering unauthorized traffic. This brand new firewall provides solid protection while reduces the firewall's CPU utilization and improves networking throughput & performance. Certificated by ICSA Lab, NVIDIA Firewall provides professional-graded security to your desktop platform.
Key Features
GIGABYTE GA-K8N51GMF. Processor manufacturer: AMD, Processor socket: Socket 754. Maximum internal memory: 2 GB, Controller type: VIA VT 6307 IEEE1394. Networking features: Ethernet/Fast Ethernet. Motherboard form factor: micro ATX, Audio chip: Realtek ALC850, Power source type: ATX. Width: 244 mm, Depth: 220 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-K8N51GMF motherboard Socket 754 micro ATX (GA-K8N51GMF) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-K8N51GMF motherboard Socket 754 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-K8N51GMF motherboard Socket 754 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-K8N51GMF.
