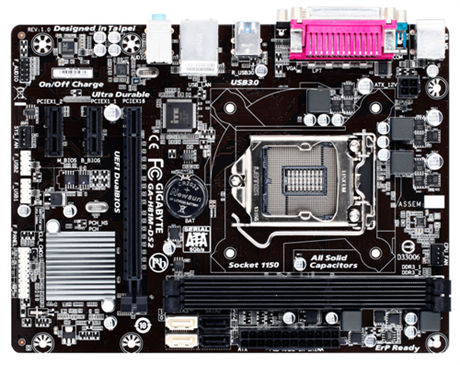

GIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX
Brand: GIGABYTE · SKU: GA-H81M-DS2 · MPN: GA-H81M-DS2 · Category: Components
GIGABYTE GA-H81M-DS2, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 16 GB, DIMM. GIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX (part number GA-H81M-DS2) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, width 226 mm, bios type EFI AMI, acpi version 2.0a, ethernet lan Yes, component for PC, microphone in Yes, memory voltage 1.5 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Width | 226 mm |
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| BIOS memory size | 128 Mbit |
| Bundled software | Norton Internet Security |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 1920 x 1200 pixels |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® H81 |
| PS/2 ports quantity | 2 |
| PC health monitoring | CPU, Fan, Temperature |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 226 mm x 170 mm |
Product Description
- Supports 4th Generation Intel® Core™ processors - GIGABYTE Ultra Durable™ 4 Plus Technology - GIGABYTE UEFI DualBIOS™ - USB 3.0 ports with GIGABYTE 3x USB power - GIGABYTE On/Off Charge™ for USB devices - LAN with high ESD Protection - LPT, COM, D-SUB port on rear panel - All solid capacitors design GIGABYTE 8 Series Motherboards GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own. Next Gen Intel® 8 Series Platform The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable™ 4 Plus GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. Ultra Performance GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. Ultra Safe GIGABYTE UEFI DualBIOS™ GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. High ESD Protection for USB and LAN (USB 3.0 only) GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes. One Fuse per USB Port (USB 3.0 only) On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.
Key Features
GIGABYTE GA-H81M-DS2. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III. Maximum graphics card memory: 1024 MB, Maximum resolution: 1920 x 1200 pixels. Ethernet interface type: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX (GA-H81M-DS2) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-H81M-DS2.
