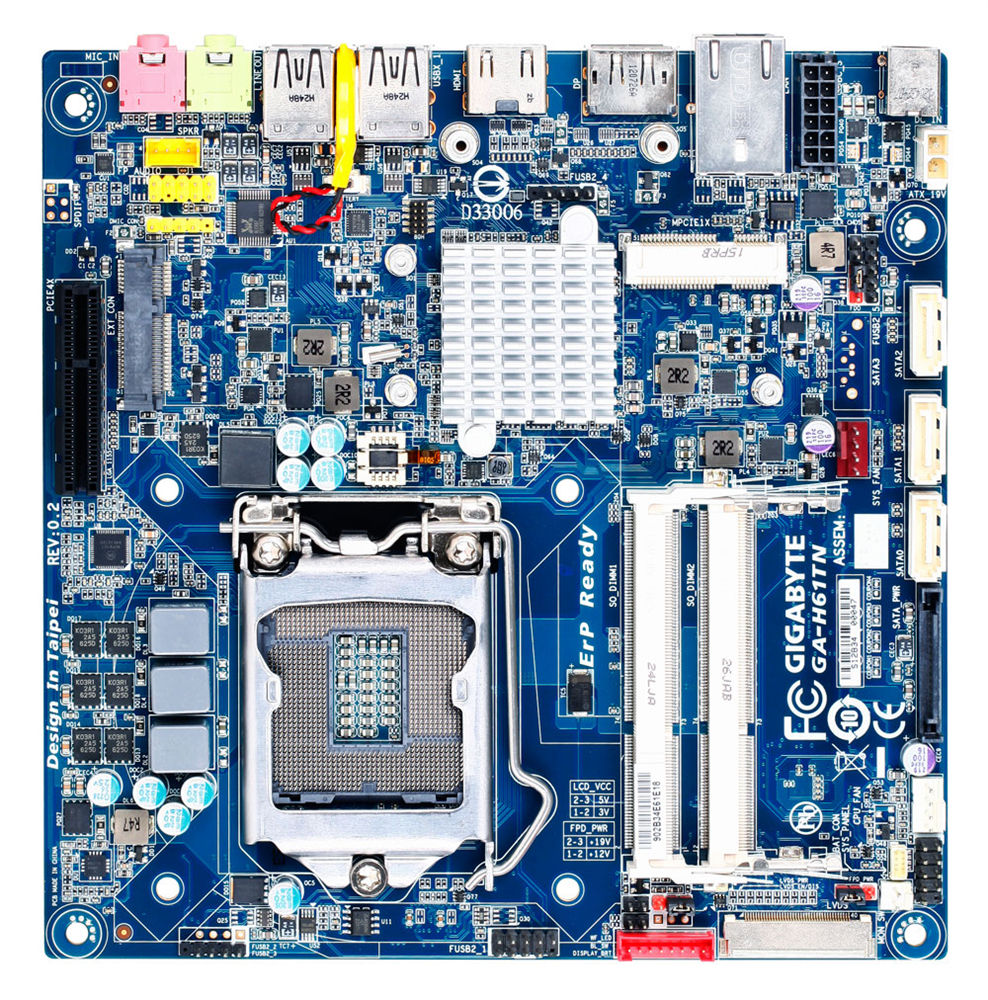

GIGABYTE GA-H61TN motherboard Intel® H61 LGA 1155 (Socket H2) mini ITX
Brand: GIGABYTE · SKU: GA-H61TN · MPN: GA-H61TN · Category: Components
GIGABYTE GA-H61TN, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, i3-3xxx, i5-3xxx, i7-3xxx, 65 W, DDR3-SDRAM. GIGABYTE GA-H61TN motherboard Intel® H61 LGA 1155 (Socket H2) mini ITX (part number GA-H61TN) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, width 170 mm, bios type EFI AMI, audio chip Realtek ALC887, acpi version 2.0a, cooling type Passive, ethernet lan Yes, hdmi version 1.3a. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Width | 170 mm |
| BIOS type | EFI AMI |
| Audio chip | Realtek ALC887 |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| HDMI version | 1.3a |
| Component for | Nettop |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | SO-DIMM |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel® H61 |
| Graphics card family | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
- Panel Driver Power Selectable - Back Light Module Power Selectable - Wide Range Voltage Input - PCI Express x4 Slot GIGABYTE Thin Mini-ITX Motherboards GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs. Selectable Panel Power Driver GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper. Selectable Back Light Power Module GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today. Wide Range Voltage Input Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs. PCI Express x4 Expansion Slot GIGABYTE Thin Mini-ITX motherboards are equipped with a x4 PCI Express expansion slot providing up to 25W of power and easy integration of TV tuner, video capture or RAID cards with a compatible riser card.
Key Features
GIGABYTE GA-H61TN. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 8 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: SATA II. Graphics card family: Intel. HDMI version: 1.3a
