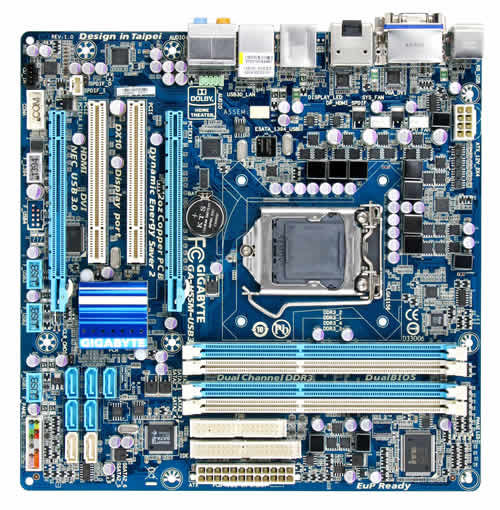

GIGABYTE GA-H55M-USB3 motherboard LGA 1156 (Socket H) micro ATX
Brand: GIGABYTE · SKU: GA-H55M-USB3 · MPN: GA-H55M-USB3 · Category: Components
GIGABYTE GA-H55M-USB3, Intel, LGA 1156 (Socket H), 16 GB, 1.5 V, Non-ECC, 0, 1, JBOD. GIGABYTE GA-H55M-USB3 motherboard LGA 1156 (Socket H) micro ATX (part number GA-H55M-USB3) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, bios type AWARD, pci slots 2, audio chip Realtek ALC889, raid levels 0, 1, JBOD, microphone in Yes, memory voltage 1.5 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AWARD |
| PCI slots | 2 |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, JBOD |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| S/PDIF in connector | Yes |
| DVI-D ports quantity | 1 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
USB 3.0 Support The GIGABYTE USB3.0 series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. Smart 6- A Smarter way for PC system Management GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button. Intel Core i7/ Core i5/ Core i3 LGA 1156 Processors Supporting the latest Intel Core i7, Core i5 and Core i3 processors featuring the first time ever integrated graphics on chip and LGA 1156 socket(Core i5 and Core i3 processors only), GIGABYTE H5x series motherboards set a new standard in multimedia platform for high definition contents playback. With the GPU integrated directly into the processor die, GIGABYTE H5x motherboards support 2 channel DDR3 memory, wide range of display interfaces that includes VGA, DVI, HDMI and DisplayPort (Depends on model). Additionally, the GIGABYTE H5x Series are optimized for greater graphics performance by enabling overclocking the GPU core frequency for a performance gain of up to 13%.
Key Features
GIGABYTE GA-H55M-USB3. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB, Memory voltage: 1.5 V, ECC сompatibility: Non-ECC. RAID levels: 0, 1, JBOD. Networking features: 10/100/1000 Mbps. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-H55M-USB3 motherboard LGA 1156 (Socket H) micro ATX (GA-H55M-USB3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-H55M-USB3 motherboard LGA 1156 (Socket H) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-H55M-USB3 motherboard LGA 1156 (Socket H) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-H55M-USB3.
