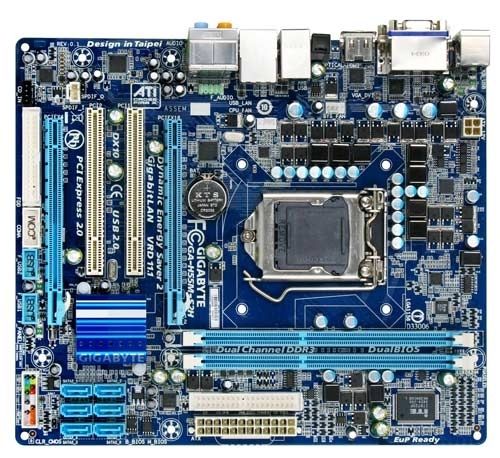

GIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATX
Brand: GIGABYTE · SKU: GA-H55M-S2H · MPN: GA-H55M-S2H · Category: Components
GIGABYTE GA-H55M-S2H, Intel, LGA 1156 (Socket H), 1.5 V, Non-ECC, 10/100/1000 Mbps, micro ATX. GIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATX (part number GA-H55M-S2H) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 244 mm, pci slots 2, audio chip Realtek ALC888B, microphone in Yes, memory voltage 1.5 V, cd/aux audio in Yes, bundled software Norton Internet Security. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC888B |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 2 |
| S/PDIF in connector | Yes |
| DVI-D ports quantity | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Number of memory slots | 2 |
| On-board graphics card | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 210 mm |
Product Description
Smart 6- A Smarter way for PC system Management GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button. Qualified for Windows 7 The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft, setting the standard for future Windows 7 certified motherboards... more Dynamic Energy Saver 2 GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button. Intel Core i5/ Core i3 LGA 1156 Processors Supporting the latest Intel Core i5 and Core i3 processors featuring the first time ever integrated graphics on chip and LGA 1156 socket, GIGABYTE H5x series motherboards set a new standard in multimedia platform for high definition contents playback. With the GPU integrated directly into the processor die, GIGABYTE H5x motherboards support 2 channel DDR3 memory, wide range of display interfaces that includes VGA, DVI, HDMI and DisplayPort (Depends on model). Additionally, the GIGABYTE H5x Series are optimized for greater graphics performance by enabling overclocking the GPU core frequency for a performance gain of up to 13%. DDR3 2200+ Support Supports Intel Core i5/ Core i3 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE.
Key Features
GIGABYTE GA-H55M-S2H. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Memory voltage: 1.5 V, ECC сompatibility: Non-ECC. Networking features: 10/100/1000 Mbps. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888B. Width: 244 mm, Depth: 210 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATX (GA-H55M-S2H) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-H55M-S2H.
