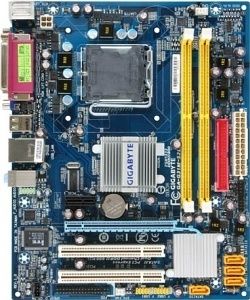

GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX
Brand: GIGABYTE · SKU: GA-G31M-S2L · MPN: GA-G31M-S2L · Category: Components
GIGABYTE GA-G31M-S2L, Intel, LGA 775 (Socket T), 4 GB, micro ATX, 5.1 channels, Realtek ALC662. GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX (part number GA-G31M-S2L) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 243 mm, audio chip Realtek ALC662, audio output S/PDIF, microphone in Yes, cd/aux audio in Yes, expansion slots 1 x PCI Express x16 1 x PCI Express x1 2 x PCI, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 243 mm |
| Audio chip | Realtek ALC662 |
| Audio output | S/PDIF |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| Special features | -@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 243 mm x 193 mm |
Product Description
Intel® Core 2 multi-core and upcoming 45nm processors GA-G31M-S2L supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform Windows Vista Premium Logo Certified Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With P35/G33/G31/P965/G965/946/945 solutions all enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new. Solid Capacitor for CPU VRM Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment. PCI Express Interface Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience; PCI-E x1interface delivers twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices. Dual Channel DDR2 800 Get a jump in memory performance with the advanced technology of DDR2 800 memory architecture, which delivers superior performance for the most demanding applications SATA 3Gb/s storage interface The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system. Gigabit LAN connectivity The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents Smart The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features! Safe Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC! RoHS compliant As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products.. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives. Features: -Supports Intel® Core™ 2 multi-core and upcoming 45nm processors. -Solid capacitors design in CPU VRM. -Dual Channel DDR2 800 for outstanding system performance. -Integrated Intel Graphics Media Accelerator 3100 (Intel GMA 3100). -Integrated SATA 3Gb/s interface. -Features high speed Gigabit Ethernet. -Integrated High Definition audio.
Key Features
GIGABYTE GA-G31M-S2L. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC662. Width: 243 mm, Depth: 193 mm. Audio output: S/PDIF, Special features: -@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX (GA-G31M-S2L) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-G31M-S2L.
