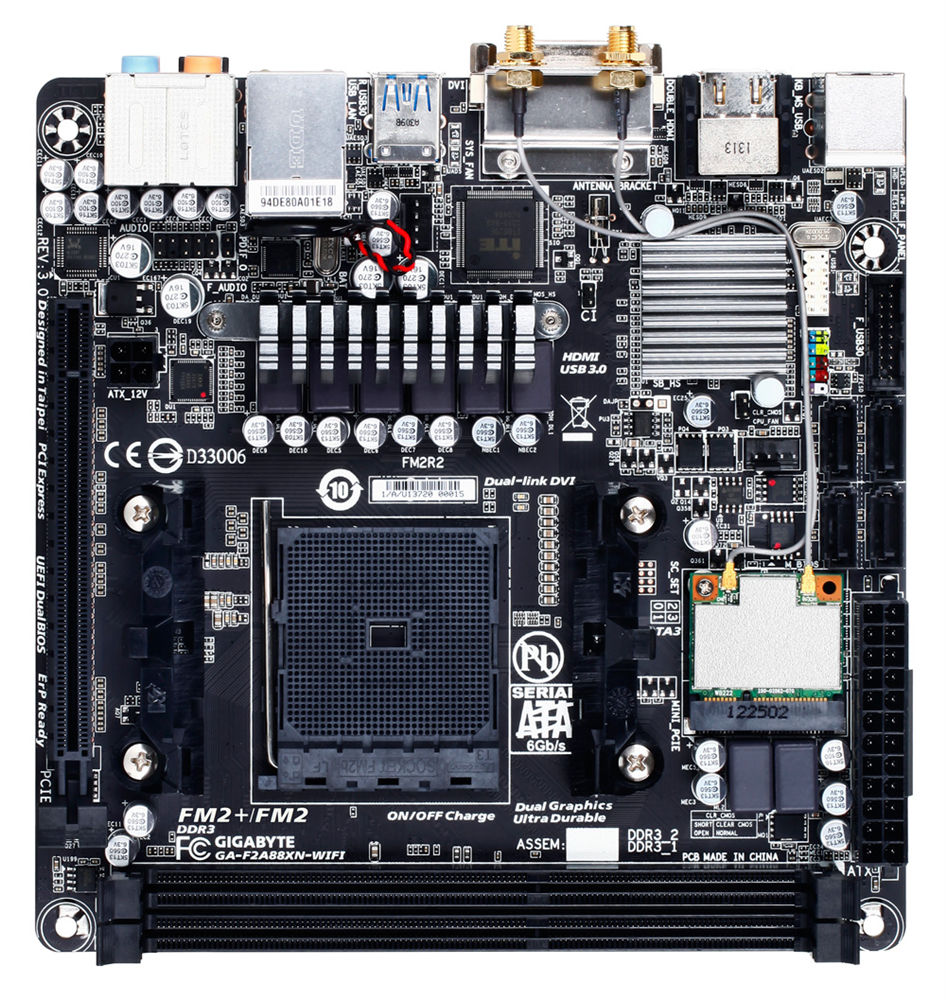

GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX
Brand: GIGABYTE · SKU: GA-F2A88XN-WIFI · MPN: GA-F2A88XN-WIFI · Category: Components
GIGABYTE GA-F2A88XN-WIFI, AMD, Socket FM2+, AMD A, DDR3-SDRAM, 64 GB, DIMM. GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX (part number GA-F2A88XN-WIFI) is an enterprise components product available from Server Tech Central. Key specifications include hdcp Yes, depth 170 mm, wi-fi Yes, width 170 mm, bios type EFI AMI, bluetooth Yes, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, JBOD. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| HDCP | Yes |
|---|---|
| Depth | 170 mm |
| Wi-Fi | Yes |
| Width | 170 mm |
| BIOS type | EFI AMI |
| Bluetooth | Yes |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10, JBOD |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| HDMI version | 1.4a |
| Component for | PC |
| Dual Link DVI | Yes |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| BIOS memory size | 64 Mbit |
| Bundled software | Norton Internet Security |
| Processor socket | Socket FM2+ |
| Bluetooth version | 4.0 |
| CPU fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
- Socket FM2+ supports AMD FM2+/FM2 A-series APU - GIGABYTE Ultra Durable™ 4 Plus Technology - IR Digital 4+2 phase APU power design - GIGABYTE UEFI DualBIOS™ - Features dual HDMI/ Dual-link DVI ports for Full HD 1080 and HDCP support - Features Dual Band 802.11ac 867Mbps + BLUETOOTH 4.0 wireless solution - 4 USB 3.0 ports with transfer rates of up to 5Gbps - 4 SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support - GIGABYTE On/Off Charge technology with 3x USB power design GIGABYTE FM2+ Series Motherboards GIGABYTE FM2+ series motherboards based on AMD A88X chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port. GIGABYTE Ultra Durable™ 4 Plus GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. Ultra Performance GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. GIGABYTE UEFI DualBIOS™ GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. 802.11ac, Dual Band, 80MHz, 2Tx2R Delivers dramatically faster Wi-Fi speeds(up to 867 Mbps)than 802.11n, with more bandwidth per stream (433 Mbps),more capacity for more users (extended channel bonding 80MHz). AMD Eyefinity Technology Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience. HDMI Interface HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
Key Features
GIGABYTE GA-F2A88XN-WIFI. Processor manufacturer: AMD, Processor socket: Socket FM2+, Compatible processor series: AMD A. Supported memory types: DDR3-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10, JBOD. Maximum graphics card memory: 2048 MB, Graphics card family: AMD, Maximum resolution: 4096 x 2160 pixels. HDMI version: 1.4a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX (GA-F2A88XN-WIFI) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-F2A88XN-WIFI.
