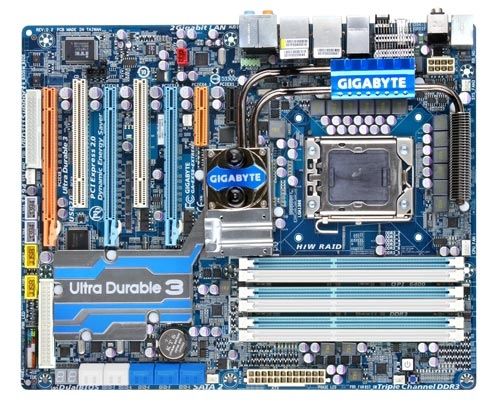

GIGABYTE GA-EX58-EXTREME motherboard Socket B (LGA 1366) ATX
Brand: GIGABYTE · SKU: GA-EX58-EXTREME · MPN: GA-EX58-EXTREME · Category: Components
GIGABYTE GA-EX58-EXTREME, Intel, Socket B (LGA 1366), 24 GB, 1.5 V, 0, 1, 10, 10/100/1000 Mbit. GIGABYTE GA-EX58-EXTREME motherboard Socket B (LGA 1366) ATX (part number GA-EX58-EXTREME) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type AWARD, audio chip Realtek ALC889A, raid levels 0, 1, 10, microphone in Yes, memory voltage 1.5 V, trial software Norton Internet Security. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| Audio chip | Realtek ALC889A |
| RAID levels | 0, 1, 10 |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| Trial software | Norton Internet Security |
| CD/AUX audio in | Yes |
| Expansion slots | 2 x PCI |
| S/PDIF out port | Yes |
| Processor socket | Socket B (LGA 1366) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 12 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Features: 1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature. 2. Supports the newest Intel® Core™ i7 processors in socket LGA1366 with QPI 6.4 GT/s. 3. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching. 4. Supports 3 channel DDR3 2100+ memory. 5. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance. 6. Advanced 12+2+2 power phase design with VRD 11.1 support. 7. New Hybrid Silent-Pipe 2 design provides unequalled heat conductivity. 8. Unique hardware control IC to provide more precision voltage control. 9. 100% 50,000 hour lifespan Japanese solid capacitors design. 10. Onboard Debug LED display simplifies motherboard troubleshooting. 11. Patented DualBIOS with dual hardware BIOS protection. 12. 2 Gigabit Ethernet LAN with Teaming functionality. 13. Supports Dolby Home Theater audio to create a stunning surround sound listening experience. 14. Power/reset/Clr CMOS onboard button for easily operation on the workbench. 15. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio.
Key Features
GIGABYTE GA-EX58-EXTREME. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366). Maximum internal memory: 24 GB, Memory voltage: 1.5 V. RAID levels: 0, 1, 10. Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889A
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-EX58-EXTREME motherboard Socket B (LGA 1366) ATX (GA-EX58-EXTREME) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-EX58-EXTREME motherboard Socket B (LGA 1366) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-EX58-EXTREME motherboard Socket B (LGA 1366) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-EX58-EXTREME.
