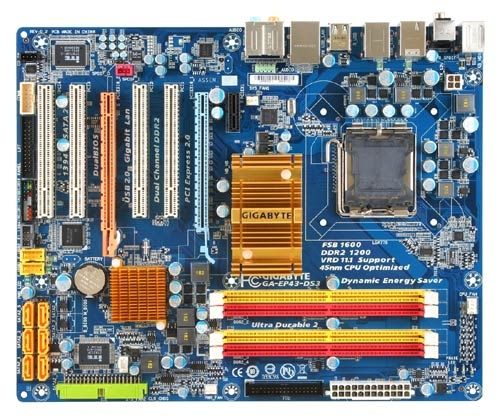

GIGABYTE GA-EP43-DS3 motherboard LGA 775 (Socket T) ATX
Brand: GIGABYTE · SKU: GA-EP43-DS3 · MPN: GA-EP43-DS3 · Category: Components
GIGABYTE GA-EP43-DS3, Intel, LGA 775 (Socket T), 8 GB, Realtek RTL8111C, 10/100/1000 Gigabit Ethernet, ATX. GIGABYTE GA-EP43-DS3 motherboard LGA 775 (Socket T) ATX (part number GA-EP43-DS3) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type AWARD, audio chip Realtek ALC888, microphone in Yes, lan controller Realtek RTL8111C, cd/aux audio in Yes, expansion slots - 1 x PCI Express x16 - 1 x PCI Express x4 - 1 x PCI Express x1 - 4 x PCI. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| Audio chip | Realtek ALC888 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Expansion slots | - 1 x PCI Express x16 - 1 x PCI Express x4 - 1 x PCI Express x1 - 4 x PCI |
| S/PDIF out port | Yes |
| Bundled software | Norton Internet Security |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | 10/100/1000 Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 8 |
| Maximum internal memory | 8 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Based on the new Intel P43 chipset, GA-EP43-DS3 delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel® Core™ 2 multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200MHz by overclocking, GA-EP43-DS3 motherboard provides the highest levels of performance and maximum overclocking potential. GA-EP43-DS3 delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2, DualBIOS design which provide optimized power savings, ultra cooling and ultra secure data protection. Smaller, Faster and More Efficient GA-EP43-DS3 motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors. Dual Channel DDR2 1200 by O.C Experience the advanced technology of DDR2 1200 memory by overclocking, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. * Please refer "Memory Support List" for memory support information PCI-E 2.0 Graphics Interface PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture. Dynamic Energy Saver Advanced GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings. GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance. Ultra Durable 2 -Designed with Top Quality Highly Efficient Components Ultra Cooling - Low RDS(on) MOSFET Design Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging. .. more Low Power Loss - Ferrite Core Choke Design Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency... more Longer Life - All-Solid Capacitor Design Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors... more Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings. Hardware Overvoltage Control ICs Hardware Overvoltage Control ICs whith provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance. EasyTune6 GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system DualBIOS™ - Patented Dual Hardware BIOS Protection DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
Key Features
GIGABYTE GA-EP43-DS3. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB. LAN controller: Realtek RTL8111C, Networking features: 10/100/1000 Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888. BIOS type: AWARD
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-EP43-DS3 motherboard LGA 775 (Socket T) ATX (GA-EP43-DS3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-EP43-DS3 motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-EP43-DS3 motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-EP43-DS3.
