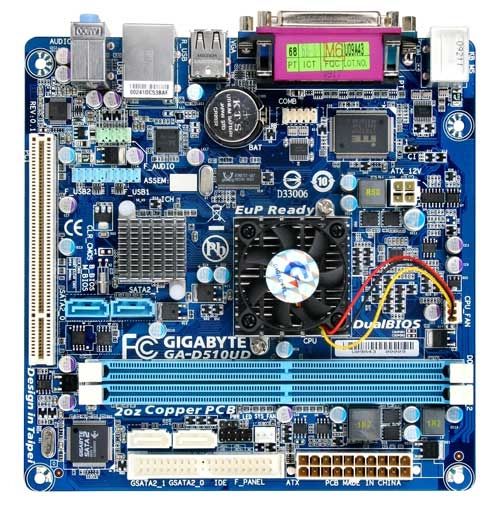

GIGABYTE GA-D510UD motherboard NA (integrated CPU) mini ITX

Specifications

Product Description

Introduction GIGABYTE GA-D510UD is designed to unleash the power of the new Intel® Atom™ processor D510 which supports the new revolutionary two–chip layout. Featuring integrated the Intel 45nm Atom Dual-Core D510 processor provides an easy-to-use flexibility and cost effective platform. Enhanced with all solid capacitors design, GA-D510UD brings small yet powerful and stable platform. Intel® Atom™ Processor D510 The new generation Intel Atom processor for entry-level desktops continues to provide innovation through integrated graphics built directly into the CPU using Intel® 45nm high-k metal gate technology, enabling smaller and more energy efficient designs. Intel® NM10 Express Chipset The Intel® NM10 Express Chipset provides additional flexibility and upgradability with two slots of single channel DDR2 memory at 800/667 MHz supporting up to 4GB maximum. Ultra Durable 3 GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more Dual DIMM DDR2 800 Experience the advanced technology of DDR2 800 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. DualBIOS™ - Patented Dual Hardware BIOS Protection DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. Gigabit LAN connectivity The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents. Serial ATA 3.0 Gb/s The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system. Intel® High Definition Audio Intel® High Definition Audio enables premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms. EuP Lot 6 support The EuP (as known as Energy Using Products Directive) is part of new European Union's environment regulations. EuP established is based on the concern of environmental issues regards electronic devices been gained popularity and how to improve energy efficiency for better and greener life. GIGABYTE presents standard motherboards to help you effectively improving system performance and saving more energy.

Key Features

GIGABYTE GA-D510UD. Processor manufacturer: Intel, Processor socket: NA (integrated CPU). Maximum internal memory: 4 GB, Memory voltage: 1.8 V. RAID levels: 0, 1, JBOD. Networking features: Gigabit Ethernet. Motherboard form factor: mini ITX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888B
