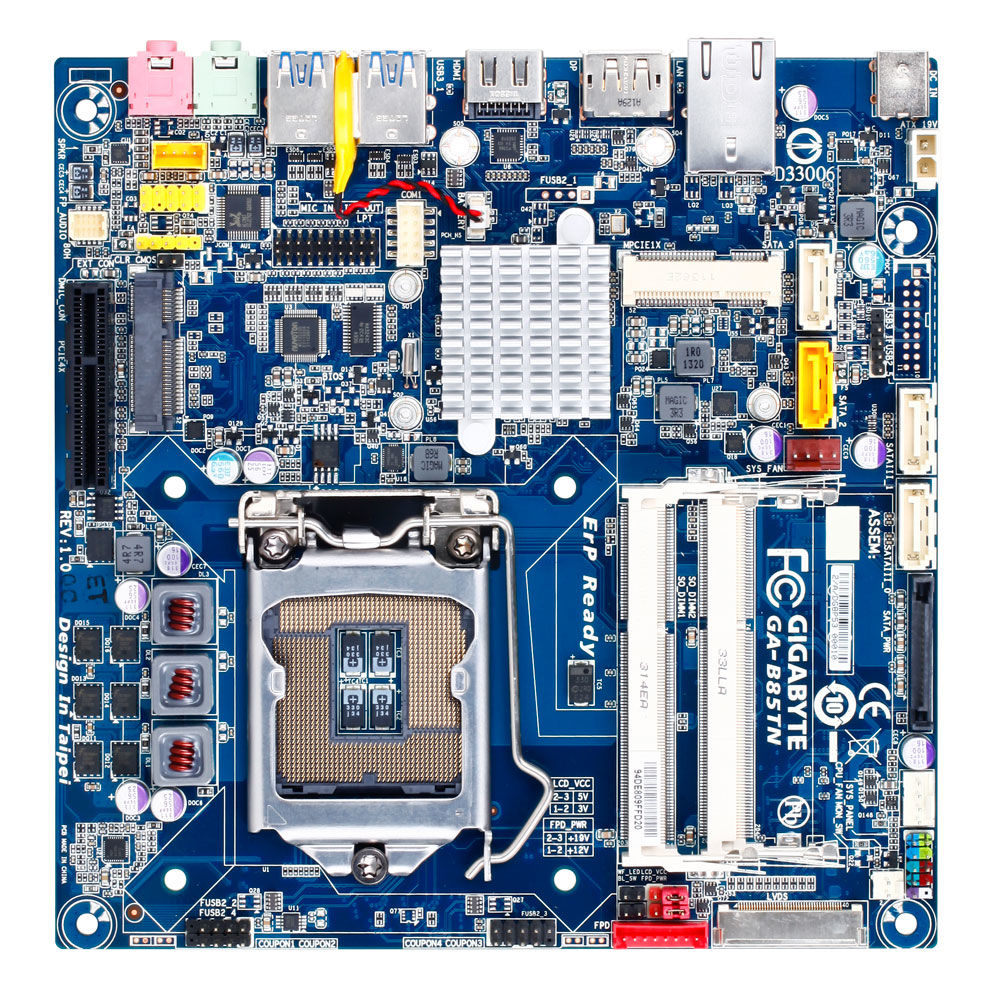

GIGABYTE GA-B85TN motherboard Intel® B85 LGA 1150 (Socket H3) mini ITX
Brand: GIGABYTE · SKU: GA-B85TN · MPN: GA-B85TN · Category: Components
GIGABYTE GA-B85TN, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, 84 W, DDR3-SDRAM. GIGABYTE GA-B85TN motherboard Intel® B85 LGA 1150 (Socket H3) mini ITX (part number GA-B85TN) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, width 170 mm, bios type EFI AMI, acpi version 2.0a, cooling type Passive, ethernet lan Yes, hdmi version 1.4a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Width | 170 mm |
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| HDMI version | 1.4a |
| Component for | PC |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| BIOS memory size | 16 Mbit |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | SO-DIMM |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel connector | Yes |
| USB 2.0 connectors | 1 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel® B85 |
| Serial port headers | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
- Panel Driver Power Selectable - Back Light Module Power Selectable - Wide Range Voltage Input - PCI Express x4 Slot GIGABYTE Thin Mini-ITX Motherboards GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs. Selectable Panel Power Driver GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper. Selectable Back Light Power Module GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today. Wide Range Voltage Input Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs. PCI Express x4 Expansion Slot GIGABYTE Thin Mini-ITX motherboards are equipped with a x4 PCI Express expansion slot providing up to 25W of power and easy integration of TV tuner, video capture or RAID cards with a compatible riser card. Intel® Small Business Advantage GIGABYTE motherboards possess a range of features that are designed to offer vastly improved and simplified control over unmanaged IT infrastructure, with specific focus on security, data backup and raising productivity levels overall. Intel® Smart Connect Technology Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go. Auto Sync with Cloud No manual interaction required to synchronize with cloud services. Data Ready Email, social media, and cloud apps always updated and available at power on. Onboard mSATA Support GIGABYTE motherboards feature an onboard mSATA slot allowing users to easily take advantage of advanced SSD-based technologies like Intel® Smart Response and Intel® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC's performance with better overall desktop responsiveness, faster boot times and faster system resume from 'Suspend to Disk' and 'Standby' modes. All Solid Capacitors GIGABYTE Ultra Durable motherboards are equipped with solid capacitors which provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games. SuperSpeed USB 3.0 GIGABYTE motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
Key Features
GIGABYTE GA-B85TN. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: SATA II, SATA III. Graphics card family: Intel, Maximum resolution: 4096 x 2160 pixels. HDMI version: 1.4a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-B85TN motherboard Intel® B85 LGA 1150 (Socket H3) mini ITX (GA-B85TN) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-B85TN motherboard Intel® B85 LGA 1150 (Socket H3) mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-B85TN motherboard Intel® B85 LGA 1150 (Socket H3) mini ITX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-B85TN.
