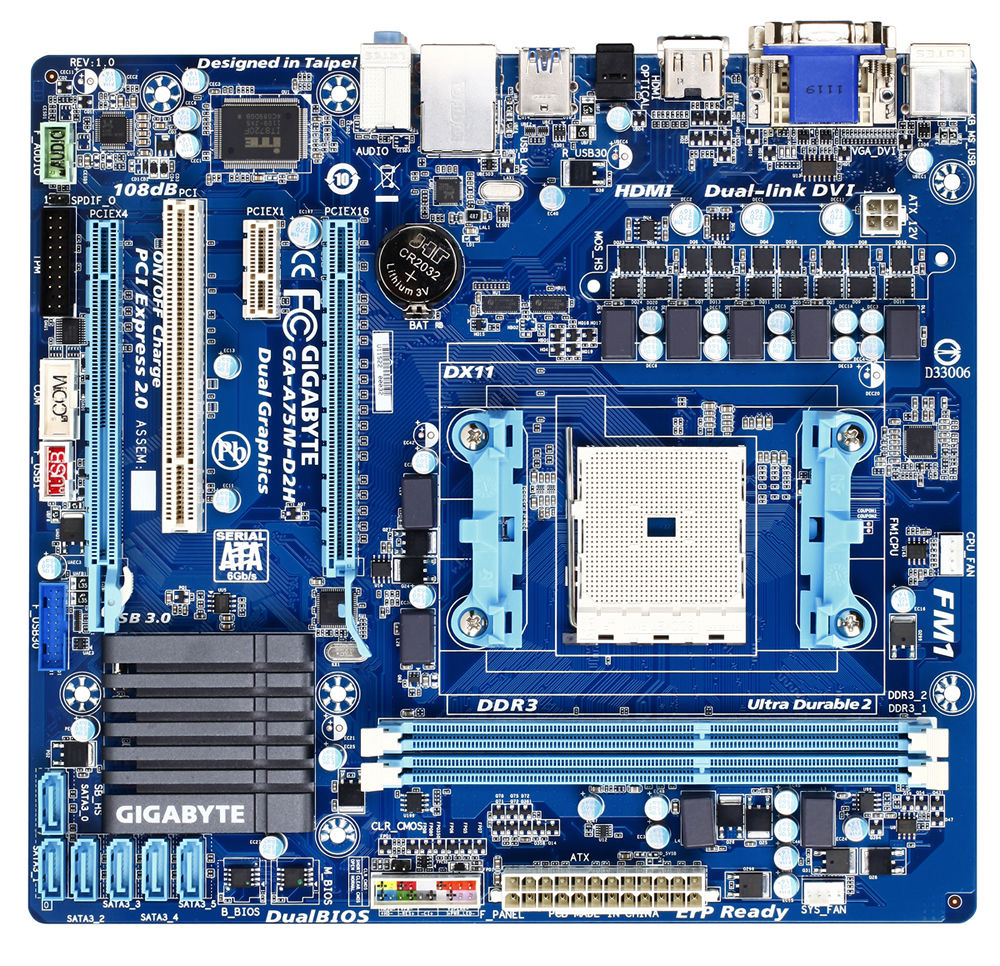

GIGABYTE GA-A75M-D2H motherboard AMD A75 Socket FM1 micro ATX
Brand: GIGABYTE · SKU: GA-A75M-D2H · MPN: GA-A75M-D2H · Category: Components
GIGABYTE GA-A75M-D2H, AMD, Socket FM1, AMD A, AMD E2, DDR3-SDRAM, 32 GB, DIMM. GIGABYTE GA-A75M-D2H motherboard AMD A75 Socket FM1 micro ATX (part number GA-A75M-D2H) is an enterprise components product available from Server Tech Central. Key specifications include depth 225 mm, width 244 mm, bios type AWARD, pci slots 1, audio chip Realtek ALC889, raid levels 0, 1, 10, JBOD, acpi version 1.0b, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 225 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AWARD |
| PCI slots | 1 |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 1.0b |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | Norton Internet Security OEM |
| Drivers included | Yes |
| Processor socket | Socket FM1 |
| Headphone outputs | 3 |
| Memory slots type | DIMM |
| Power source type | ATX |
| USB 2.0 connectors | 1 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD A75 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 225 mm |
Product Description
GIGABYTE Super4™ motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series/E-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE Super4™ motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today. AMD Dual Graphics: Unrivalled Upgradability The AMD A75/A55 series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ HD 6000 series graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors. Dual Channel DDR3 2400+ MHz Delivering native support for DDR3 memory up to 2400MHz, GIGABYTE Ultra Durable series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. Ultra Durable 2 - Classic GIGABYTE was the first motherboard manufacturer to realize the importance of using only the highest quality components for the critically important CPU VRM zone of the motherboard which is responsible for delivering stable power to the CPU. The GIGABYTE Ultra Durable™ 2 Classic design utilizes Solid Capacitors manufactured in Japan which are rated to last for at least 50,000 hours in operational use and also Lower RDS(on) MOSFETs which feature lower resistance, i.e. reduced power consumption and heat. Super Sound As the HD multimedia revolution continues to gain momentum, so too must hardware standards in audio quality. All GIGABYTE Super4™ motherboards offer excellent 7.1 surround sound audio backed by a proprietary converter that is able to achieve 108dB noise ratio (SNR) playback quality. This means that users will enjoy a better audio experience with lower levels of noise and hiss when enjoying the latest HD content.
Key Features
GIGABYTE GA-A75M-D2H. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A, AMD E2. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 10, JBOD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabti Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-A75M-D2H motherboard AMD A75 Socket FM1 micro ATX (GA-A75M-D2H) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-A75M-D2H motherboard AMD A75 Socket FM1 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-A75M-D2H motherboard AMD A75 Socket FM1 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-A75M-D2H.
