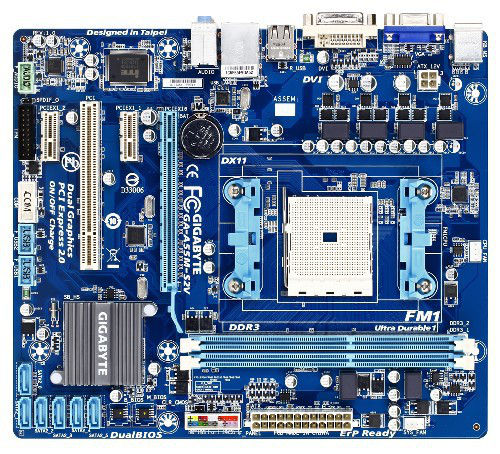

GIGABYTE GA-A55M-S2V AMD A75 Socket FM1 micro ATX
Brand: GIGABYTE · SKU: GA-A55M-S2V-R1 · MPN: GA-A55M-S2V-R1 · Category: Components
GIGABYTE GA-A55M-S2V, AMD, Socket FM1, AMD A, AMD E2, DDR3-SDRAM, 32 GB, Dual-channel. GIGABYTE GA-A55M-S2V AMD A75 Socket FM1 micro ATX (part number GA-A55M-S2V-R1) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 244 mm, bios type AWARD, pci slots 1, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD, acpi version 1.0b, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AWARD |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 1.0b |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Bundled software | Norton Internet Security OEM |
| Drivers included | Yes |
| Processor socket | Socket FM1 |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Motherboard chipset | AMD A75 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 210 mm |
Product Description
GIGABYTE motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series/E-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today. Supporting Microsoft® DirectX® 11, OpenGL 4.1 and OpenCL 1.1 standards, AMD graphics deliver 3DMark Vantage (Performance setting) scores of over 6000 points, and a 3D gaming experience similar to entry-level discrete graphics card solutions. DVI (Digital Visual Interface) is a new video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as flat LCD monitors, digital projectors, and so on. In addition, DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media contents. Delivering native support for DDR3 memory up to 2400MHz, GIGABYTE Ultra Durable series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
Key Features
GIGABYTE GA-A55M-S2V. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A, AMD E2. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 10, JBOD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
