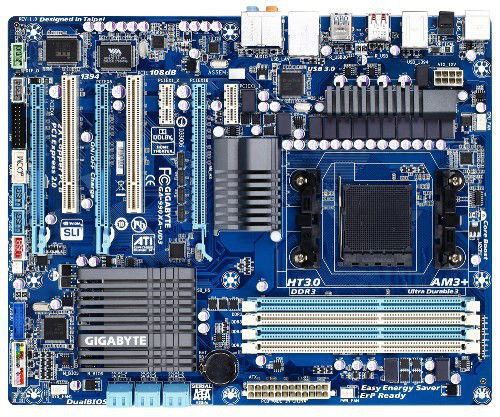

GIGABYTE GA-990XA-UD3

Specifications

Product Description

DISCLAIMER: these specs are for revision 1.0. Introduction The 990XA-UD3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. All USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices. On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger... *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model. *Whether to support 3X USB power design, it may vary by models. Get Ready for New Generation of 32nm AMD AM3+ CPU GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE AMD 900 series motherboards are integrated the latest AMD SB950 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 900 series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration. USB 3.0 Support The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. Multi-display support with 2 way SLI™ and 2 way CrossFireX Flexible graphics capabilities - Up to 2 VGA cards are supported for either 2 way CrossFireX™ or 2 way SLI™ action (running at two x8 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. Note: Please update the latest version of BIOS from GIGABYTE website and VGA driver from vender’s website. AMD OverDrive Support The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.* For download site of AMD OverDrive™, please visit AMD official website for details: ** The support condition of this utility may vary by models(chipsets). Dual Channel DDR3 2000+ MHz Delivering native support for DDR3 memory up to 2000MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages;

Key Features

GIGABYTE GA-990XA-UD3
