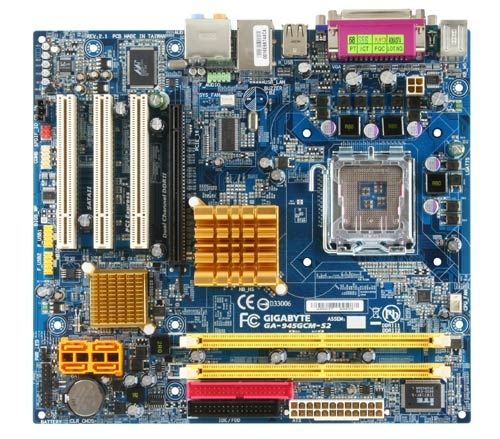

GIGABYTE GA-945GCM-S2 (rev. 2.1) LGA 775 (Socket T) micro ATX
Brand: GIGABYTE · SKU: GA-945GCM-S2 · MPN: GA-945GCM-S2 · Category: Components
GIGABYTE GA-945GCM-S2 (rev. 2.1), Intel, LGA 775 (Socket T), 533 MHz, 2 GB, Marvell 88E8001, Gigabit Ethernet. GIGABYTE GA-945GCM-S2 (rev. 2.1) LGA 775 (Socket T) micro ATX (part number GA-945GCM-S2) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 220 mm, microphone in Yes, lan controller Marvell 88E8001, expansion slots 1 x PCI Express x 16 3 x PCI, processor socket LGA 775 (Socket T), cpu fan connector Yes, headphone outputs 1. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 220 mm |
| Microphone in | Yes |
| LAN controller | Marvell 88E8001 |
| Expansion slots | 1 x PCI Express x 16 3 x PCI |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Graphics controller | Intel GMA 950 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 2 GB |
| Motherboard form factor | micro ATX |
| Parallel ports quantity | 1 |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 220 mm x 244 mm |
Product Description
Windows Vista Premium Logo Certified Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With 945GZME-RH and P965/G965/946/945 solutions all enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new. Intel® 945GC Express Chipset The Intel® 945GC Express Chipset with Intel Graphics Media Accelerator 950 graphics core delivers outstanding system performance through high-bandwidth interfaces such as dual-channel DDR2 memory, 533/400 MHz system bus, PCI Express x16 graphics port, Serial ATA 3.0 Gb/s and Hi-Speed USB 2.0 connectivity management. Intel® Graphic Media Accelerator 950 The Intel® Graphics Media Accelerator 950 combines faster graphics processing and increased memory bandwidth to deliver richer visual quality and colors without the need for additional discrete graphics cards. Intel Next-Generation Core™2 Duo Processor Leading the silicon process technology from 90nm to 65nm, the Intel new-generation CPU transistors deliver more energy-efficient performance than anyone. Based on the Intel's next generation Micro Architecture, the Intel Core ™2 Duo processor with two cores and shared L2 caches provides the best capability-per-watt solutions. The cutting-edge processor the significant performance boosts and better energy efficient platform PCI Express Interface Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience; PCI-E x1interface delivers twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices. Gigabit LAN connectivity The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents. Serial ATA 3.0 Gb/s The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system. 8 channel Intel® High Definition Audio Intel® High Definition Audio enables premium digital sound in the PC for an immersive surround sound experience. In addition, Intel® HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms. RoHS compliant As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products.. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
Key Features
GIGABYTE GA-945GCM-S2 (rev. 2.1). Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor system buses supported: 533 MHz. Maximum internal memory: 2 GB. LAN controller: Marvell 88E8001, Networking features: Gigabit Ethernet. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Power source type: ATX. Width: 220 mm, Depth: 244 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-945GCM-S2 (rev. 2.1) LGA 775 (Socket T) micro ATX (GA-945GCM-S2) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-945GCM-S2 (rev. 2.1) LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-945GCM-S2 (rev. 2.1) LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-945GCM-S2.
