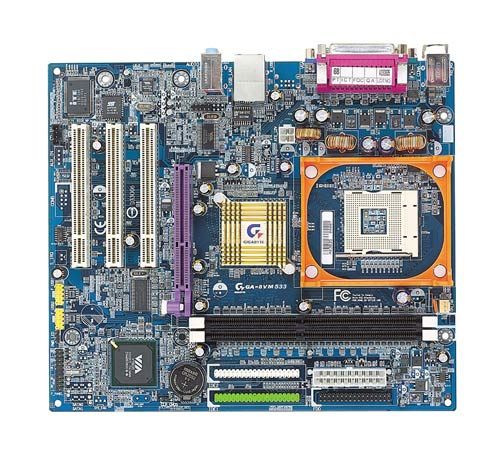

GIGABYTE GA-8VM533 motherboard Socket 478 micro ATX
Brand: GIGABYTE · SKU: GA-8VM533 · MPN: GA-8VM533 · Category: Components
GIGABYTE GA-8VM533, Intel, Socket 478, Intel® Pentium® 4, 2 GB, micro ATX, VIA VT1616. GIGABYTE GA-8VM533 motherboard Socket 478 micro ATX (part number GA-8VM533) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 244 mm, pci slots 3, audio chip VIA VT1616, agp x4 slots 1, cd/aux audio in Yes, processor socket Socket 478, headphone outputs 3. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 3 |
| Audio chip | VIA VT1616 |
| AGP x4 slots | 1 |
| CD/AUX audio in | Yes |
| Processor socket | Socket 478 |
| Headphone outputs | 3 |
| Power source type | ATX |
| COM ports quantity | 1 |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 2 GB |
| Motherboard form factor | micro ATX |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Compatible processor series | Intel® Pentium® 4 |
| Floppy disk drive connector | Yes |
| Number of Parallel ATA connectors | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 210 mm |
Product Description
- Supports Pentium® 4 Processor with HT Technology; - Enhance system performance with DDR 266 memory; - Integrated ProSavage8 2D/3D Graphics engine; - Integrated 6-channel AC’97 audio; - Provides 6 USB 2.0 ports for high-speed connectivity; - Integrated 10/100 network connection. Introduction GA-8VM533 is a highly value-oriented P4 platform with good performance and complete features. Empowered by the latest VIA P4M266A/8235(CE) chipsets, and Gigabyte's R&D expertise, GA-8VM533 delivers a new architecture to uplift the system performance. The new framework supports DDR266, AGP 4X and Intel® Pentium® 4 3GHz+ processor with Hyper-Threading Technology. The integrated graphics, ProSavage8 Graphics engine, provides high quality graphics to ensure outstanding visual experience for multimedia equipments. GA-8VM533 also provides a variety of features such as 6 USB 2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed ATA133 interface. GA-8VM533 is designed to deliver the best all-in-one solution and fulfill the requirement for full range of applications now and future. Supports Intel Hyper-Threading Technology Experiencing the extraordinary computing power of Pentium 4 processor with Hyper-Threading Technology. Enabling the system to multitask more efficiently than ever before when running the most demanding applications at the same time. Integrated ProSavage8 2D/3D Graphics Accelerator The VIA P4M266A with S3 Graphics ProSavage8™ core yields an unbeatable mix of power, flexibility and value. Supporting enhanced 128-bit 3D and 2D engines, 32MB of Frame Buffer capability and DVD DXVA Motion Compensation for smooth DVD playback, the integrated S3 Graphics ProSavage8™ core provides class leading 2D,3D video quality and performance. Supports DDR 266/200 up to 2GB Memory Available with 2 DIMM slots supporting up to 2GB of DDR266/DDR200 memory, GA-8VM533 provides the highest performance platform with the highest bandwidth (2.1GB/s) mainstream DDR memory solution. Great Expandability of 6 USB 2.0 ports USB 2.0 interface, with data transfer rate up to 480Mbps, is 40 times faster than USB1.1, providing a faster interface for computer peripherals. Integrated High quality 6-Channel AC97 Audio Through 6-channel audio output, users can experience the 3D surround sound without additional equipments. It fulfills the requirements for a variety of audio applications, such as MP3 or Audio CD playback, DVD movies and gaming thus delivering ideal platform for multimedia solution. Ethernet 10/100Mbps Network Connection On-board 10/100 Mbps Ethernet LAN connectivity for value-minded users who need straightforward network connectivity. EasyTune™ 4 - User Friendly Overclocking Utility A user-friendly windows based utility developed by Gigabyte provides a brand new experience of easily operation and enjoyment for over-clocking on your platform. Norton Internet Security™ Included Norton Internet Security™ 2003 is the essential protection from viruses, hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.
Key Features
GIGABYTE GA-8VM533. Processor manufacturer: Intel, Processor socket: Socket 478, Compatible processor series: Intel® Pentium® 4. Maximum internal memory: 2 GB. Motherboard form factor: micro ATX, Audio chip: VIA VT1616, Power source type: ATX. Width: 244 mm, Depth: 210 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-8VM533 motherboard Socket 478 micro ATX (GA-8VM533) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-8VM533 motherboard Socket 478 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-8VM533 motherboard Socket 478 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-8VM533.
