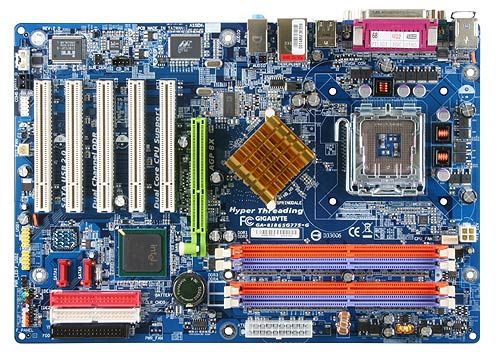

GIGABYTE GA-8I865G775-G motherboard LGA 775 (Socket T) ATX
Brand: GIGABYTE · SKU: GA-8I865G775-G · MPN: GA-8I865G775-G · Category: Components
GIGABYTE GA-8I865G775-G, Intel, LGA 775 (Socket T), 4 GB, 10/100/1000, ATX, Realtek ALC653. GIGABYTE GA-8I865G775-G motherboard LGA 775 (Socket T) ATX (part number GA-8I865G775-G) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 305 mm, audio chip Realtek ALC653, cd/aux audio in Yes, processor socket LGA 775 (Socket T), cpu fan connector Yes, headphone outputs 3, power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC653 |
| CD/AUX audio in | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | 10/100/1000 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Floppy disk drive connector | Yes |
| Front panel audio connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 210 mm |
Product Description
- Supports Intel® Pentium® 4 / Pentium® D Processor; - Supports high performance Dual Channel DDR400 memory; - Integrated high-speed SATA interface; - Features Intel® Extreme Graphics 2 Engine; - Features high-speed Gigabit Ethernet connection; - Integrated high quality 6-channel AC'97 audio. Introduction The all-in-one solution for the LGA775 Intel® Pentium® 4 processor with 800MHz FSB and Hyper-Threading Technology, and powered by the Intel® 865G chipset. The architecture of 800MHz FSB, AGP 8x, Dual Channel DDR 400 and revolutionary Intel® Extreme Graphics Engine 2 provides promising framework for any tasks. The revolutionary Serial ATA function is integrated to provide superior I/O performance and data protection. GA-8I865G775-G will definitely delivers the uppermost platform with unprecedented computing power and rock-solid stability for home and corporate usage. Supports 800MHz FSB Intel® Pentium®4 Processor with HT Technology & Intel® Extreme Graphics Engine 2 Leveraging the Intel® 865G chipset to support 3GHz+ P4 CPUs on 800MHz FSB, Intel Hyper-Threading Technology and revolutionary Intel® Extreme Graphics Engine 2, the GA-8I865G775-G delivers a full-value, outstanding performance solution for today's most demanding tasks. Optimized for Intel® Dual core Processor Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 Caches to satisfy the rising demand for more powerful processing capability. (Only support Intel 920,820,805, and lower frequency processor. Please refer to CPU support list for more details). Dual Channel DDR 400 Memory Architecture With double the bandwidth of your system memory and hence boosts the system performance to out perform any memory existing solutions in the market. The GA-8I865G775-G allows you to handle memory-intensive tasks with ease. Serial ATA Interface Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility. AGP 8X Graphics Interface AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X. Great Expandability of 8 USB 2.0 ports USB 2.0 interface, with data transfer rate up to 480Mbps, is 40 times faster than USB1.1, providing a faster interface for computer peripherals. Xpress Recovery2 Xpress Recovery2 is a revolutionary software feature that backup or restore system files thru BIOS function.
Key Features
GIGABYTE GA-8I865G775-G. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB. Networking features: 10/100/1000. Motherboard form factor: ATX, Audio chip: Realtek ALC653, Power source type: ATX. Width: 305 mm, Depth: 210 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-8I865G775-G motherboard LGA 775 (Socket T) ATX (GA-8I865G775-G) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-8I865G775-G motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-8I865G775-G motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-8I865G775-G.
