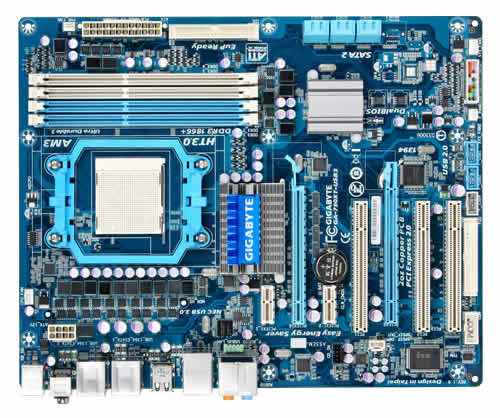

GIGABYTE GA-790XT-USB3 motherboard AMD 790X Socket AM3 ATX
Brand: GIGABYTE · SKU: GA-790XT-USB3 · MPN: GA-790XT-USB3 · Category: Components
GIGABYTE GA-790XT-USB3, AMD, Socket AM3, 1.5 V, 0, 1, 5, 10, JBOD, 10/100/1000 Mbps, ATX. GIGABYTE GA-790XT-USB3 motherboard AMD 790X Socket AM3 ATX (part number GA-790XT-USB3) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, pci slots 3, audio chip Realtek ALC889, raid levels 0, 1, 5, 10, JBOD, memory voltage 1.5 V, cd/aux audio in Yes, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 3 |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 5, 10, JBOD |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Motherboard chipset | AMD 790X |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 2 |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Introduction The GA-790XT-USB3 based on AMD 790X chipset, it supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DDR3 memory controller, HyperTransport 3.0 technology links and 2 PCI Express 2.0 graphics interfaces with ATI CrossFireX support. With the latest innovative GIGABYTE USB 3.0/ 3X USB power & Easy Energy Saver technology, the GA-790XT-USB3 is able to provide amazingly fast data transfer via USB3.0 connectors, also to reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom I/ Athlon II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. USB 3.0 Support The GIGABYTE AMD 700A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. 3x USB Power Boost GIGABYTE AMD 700A series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. Dual Channel DDR3 1866+ MHz Delivering native support for DDR3 memory up to 1866MHz, GIGABYTE Ultra Durable 3 motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. * DDR3 1866+ is supported with combination of AM3 CPU and qualified memory modules, please refer "Memory Support List" for detail memory support information.
Key Features
GIGABYTE GA-790XT-USB3. Processor manufacturer: AMD, Processor socket: Socket AM3. Memory voltage: 1.5 V. RAID levels: 0, 1, 5, 10, JBOD. Networking features: 10/100/1000 Mbps. Motherboard form factor: ATX, Motherboard chipset: AMD 790X, Audio output channels: 7.1 channels
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-790XT-USB3 motherboard AMD 790X Socket AM3 ATX (GA-790XT-USB3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-790XT-USB3 motherboard AMD 790X Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-790XT-USB3 motherboard AMD 790X Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-790XT-USB3.
