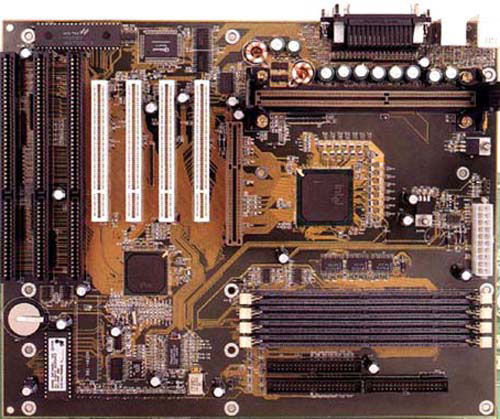

GIGABYTE GA-686LX motherboard NA (integrated CPU) ATX
Brand: GIGABYTE · SKU: GA-686LX · MPN: GA-686LX · Category: Components
GIGABYTE GA-686LX, Intel, NA (integrated CPU), 3.3 V, ECC & Non-ECC, ATX, ATX. GIGABYTE GA-686LX motherboard NA (integrated CPU) ATX (part number GA-686LX) is an enterprise processors product available from Server Tech Central. Key specifications include memory voltage 3.3 V, bios memory size 2 Mbit, processor socket NA (integrated CPU), power source type ATX, ecc сompatibility ECC & Non-ECC, ps/2 ports quantity 2, number of memory slots 4, processor manufacturer Intel. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Memory voltage | 3.3 V |
|---|---|
| BIOS memory size | 2 Mbit |
| Processor socket | NA (integrated CPU) |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| PS/2 ports quantity | 2 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 2 |
| Motherboard form factor | ATX |
| Floppy disk drive connector | Yes |
| Number of Parallel ATA connectors | 2 |
| Warranty | 3-Year Warranty |
Product Description
CPU - CPU - Pentium® II processor; - 242 pins 66MHz slot1 on board; - Cache memory: 32 KB 1st cache memory included in CPU, 256KB/512 KB 2nd cache in CPU, Support DIB speed mode for L2 Cache, 1 66MHz / 133MHz AGP bus. Chipset - Intel 440LX chipset. Front Side Bus - 66MHz. Memory - 4 banks 168 pins DIMM module sockets on board; - Use 8 / 16 / 32 / 64 / 128 / 256 MB 60~70 ns DIMM module DRAM; - 8 ~ 1 GB DRAM size; - Support 3.3V SDRAM / EDO type DRAM; - Support ECC or Non-ECC type DRAM. Internal I/O Connectors - 2 Ultra DMA/33 Bus Master IDE channels on board.(Using IRQ14,15); - Backward Support Mode 3,4 IDE & ATAPI CD -ROM. Expansion Slots - 1* 66 MHz AGP BUS; - 4* 33MHz Master / Slave PCI-BUS; - 3* 8MHz 16 bits ISA BUS. Back Panel Connectors - Supports 2 16550 COM ports. (Using IRQ4, 3); - Supports 1 EPP/ECP LPT port. (Using IRQ7 or 5 and DMA3 or 1); - Supports 1 1.44/2.88 MB Floppy port. (Using DMA2 & IRQ6); - Supports 2 USB ports; - Supports PS/2 Mouse. (Using IRQ12 ); - Supports PS/2 Keyboard. (Using IRQ1). Form Factor - ATX Form Factor, 4 layers PCB. H/W Monitoring - H/W monitor power status (5V, 12V, CPU voltage & CMOS battery voltage). BIOS - Licensed AWARD BIOS; - 256KB FLASH EEPROM; - Supports Plug & Play, DMI, ACPI Function; - AT CMOS Setup, BIOS / Chipset Setup, Green Setup, Hard Disk Utility included; - Monitor Health status. Other Features 1. Protection - Onboard Buzzer Alarm when detect "CPU FAN Failure" or "CPU Overheat"; - Automatically slow down CPU speed when "CPU FAN Failure" or "CPU Overheat"; - Intel LDCM® support. 2. GREEN FUNCTION - Suspend mode support; - Green switch & LED support; - IDE & Display power down support; - Monitor all IRQ / DMA / Display / I/O events. Driver - Intel LDCM® optional; - Health monitor Utility; - Bus Master IDE Driver.
Key Features
GIGABYTE GA-686LX. Processor manufacturer: Intel, Processor socket: NA (integrated CPU). Memory voltage: 3.3 V, ECC сompatibility: ECC & Non-ECC. Motherboard form factor: ATX, Power source type: ATX. BIOS memory size: 2 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-686LX motherboard NA (integrated CPU) ATX (GA-686LX) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-686LX motherboard NA (integrated CPU) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-686LX motherboard NA (integrated CPU) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-686LX.
