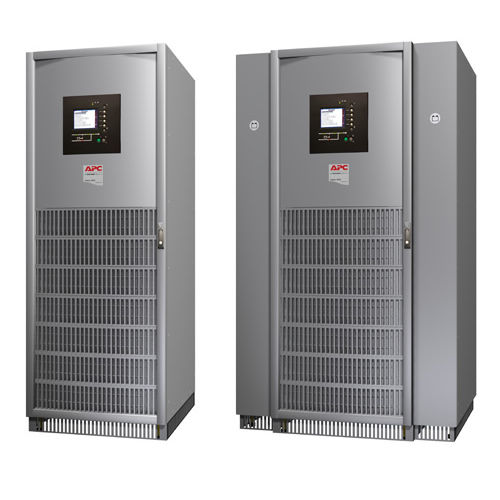

APC GALAXY 5000 uninterruptible power supply (UPS) 40 kVA 36000 W
Brand: APC · SKU: G5USV040P005SAIO · MPN: G5USV040P005SAIO · Category: Components
APC GALAXY 5000, 40 kVA, 36000 W, 400 V, 600 V, 45/65 Hz, 400 V. APC GALAXY 5000 uninterruptible power supply (UPS) 40 kVA 36000 W (part number G5USV040P005SAIO) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 848 mm, width 712 mm, height 1900 mm, weight 400 kg, cold start Yes, efficiency 85%, noise level 66 dB, auto-restart Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 848 mm |
|---|---|
| Width | 712 mm |
| Height | 1900 mm |
| Weight | 400 kg |
| Cold start | Yes |
| Efficiency | 85% |
| Noise level | 66 dB |
| Auto-restart | Yes |
| Built-in fan | Yes |
| Cooling type | Active |
| Display type | LCD |
| Output power | 36000 W |
| LED indicators | Charging, Power, Stand-by |
| Package weight | 420 kg |
| Product colour | Silver |
| Input frequency | 45/65 Hz |
| Maximum current | 87 A |
| Surge protection | Yes |
| Off-mode charging | Yes |
| Output power capacity | 40 kVA |
| Emergency Power Off (EPO) | Yes |
| Output voltage regulation | 2% |
| Power protection features | Over current, Over power, Over voltage, Overcharge, Overdischarge, Overload, Short circuit, Under current, Under power, Under voltage |
| Storage temperature (T-T) | -20 - 45 °C |
| Warranty | 3-Year Warranty |
| Weight | 400 kg |
| Dimensions | 712 mm x 848 mm x 1900 mm |
Product Description
Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Parallel-capacity capable Increases total power capacity by using multiple UPSs simultaneously. Parallel-redundant capable Power the connected equipment with multiple UPSs to increase system redundancy Serviceability - Front-access servicing - Simplifies installation and maintenance while minimizing space requirements. - Multiple levels of service - With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you. - 7x24 telephone technical support - Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it. Manageability - Network manageable - Provides remote management of the UPS over the network. - Integrates with InfraStruXure Central - An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network - Multiple distribution options - Superior design flexibility enables a wide range of customer requirements to be addressed. - LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms. - LED status indicators - Quickly understand unit and power status with visual indicators. Total Cost of Ownership - ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection - Input power factor correction - Minimizes installation costs by enabling the use of smaller generators and cabling. - Predicitive failure notification - Provides early-warning fault analysis ensuring proactive component replacement. - Wide input voltage range - Designed for harsh electrical environments to save battery life.
Key Features
APC GALAXY 5000. Output power capacity: 40 kVA, Output power: 36000 W, Input operation voltage (min): 400 V. Typical backup time at full load: 1 min, Typical backup time at half load: 10 min. Product colour: Silver, Cooling type: Active, Display type: LCD. Width: 712 mm, Depth: 848 mm, Height: 1900 mm. Package weight: 420 kg
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC GALAXY 5000 uninterruptible power supply (UPS) 40 kVA 36000 W (G5USV040P005SAIO) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC GALAXY 5000 uninterruptible power supply (UPS) 40 kVA 36000 W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC GALAXY 5000 uninterruptible power supply (UPS) 40 kVA 36000 W compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the G5USV040P005SAIO.
