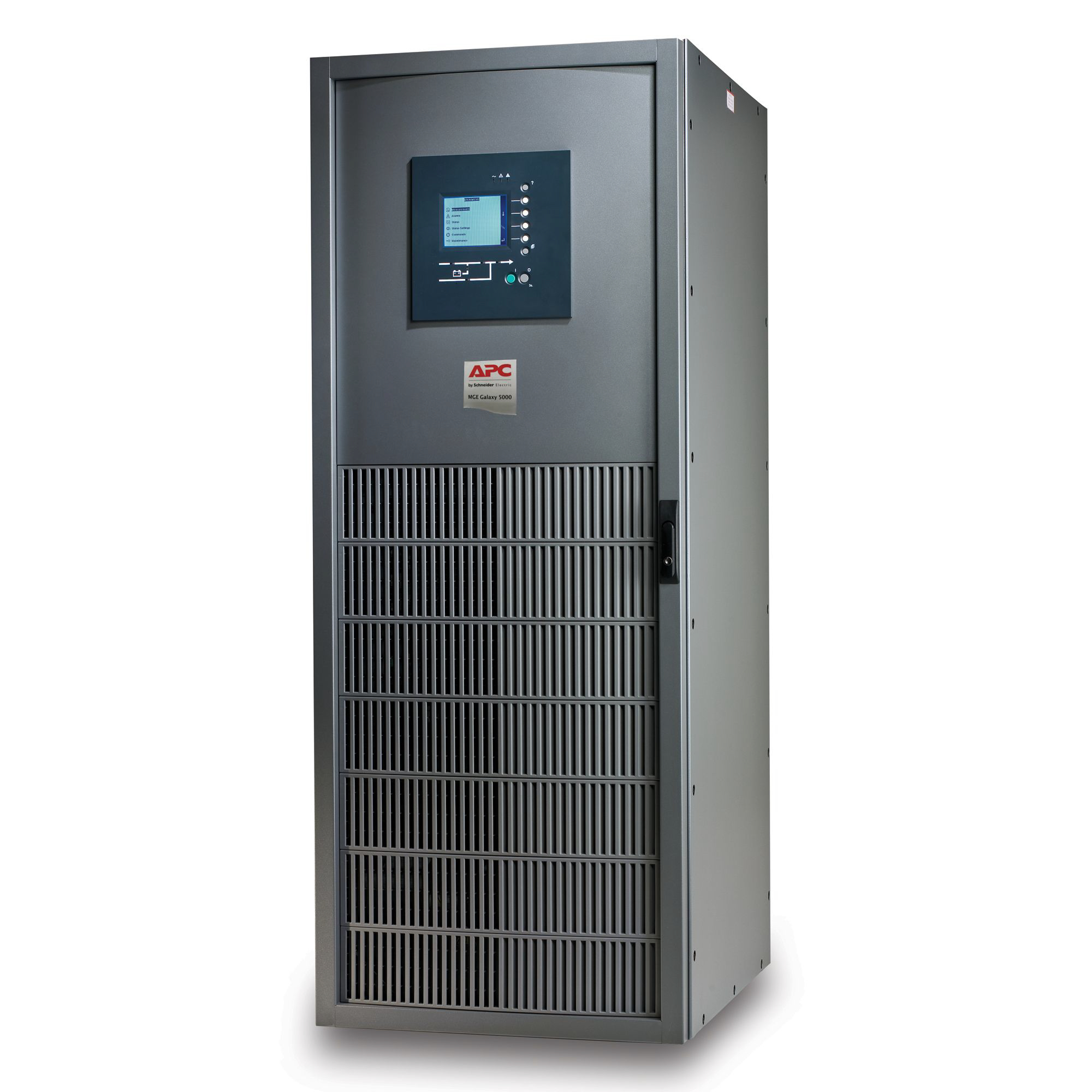

APC MGE Galaxy 5000 40 kVA uninterruptible power supply (UPS) 36000 W 2 AC outlet(s)
Brand: APC · SKU: G5TUPS40 · MPN: G5TUPS40 · Category: Components
APC MGE Galaxy 5000 40 kVA, 40 kVA, 36000 W, 480 V, 538 V, 50/60 Hz, 77 A. APC MGE Galaxy 5000 40 kVA uninterruptible power supply (UPS) 36000 W 2 AC outlet(s) (part number G5TUPS40) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 848 mm, width 712 mm, height 1900 mm, safety cUL, UL, weight 400 kg, interface SmartSlot, efficiency 91.1%, form factor Tower. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 848 mm |
|---|---|
| Width | 712 mm |
| Height | 1900 mm |
| Safety | cUL, UL |
| Weight | 400 kg |
| Interface | SmartSlot |
| Efficiency | 91.1% |
| Form factor | Tower |
| Noise level | 66 dB |
| Crest factor | 3:1 |
| Display type | LCD |
| Output power | 36000 W |
| Certification | CE, EN/IEC 62040-1-1, EN/IEC 62040-3, IEC 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-5, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE |
| Package weight | 420 kg |
| Product colour | Charcoal |
| Input frequency | 50/60 Hz |
| Maximum current | 77 A |
| Surge protection | Yes |
| Dimensions (WxDxH) | 712 x 848 x 1900 mm |
| Operating altitude | 0 - 999.9 m |
| AC outlets quantity | 2 AC outlet(s) |
| Output voltage note | 380, 400, 415 |
| Overload protection | Yes |
| Input connection type | 3PH + G |
| Warranty | 3-Year Warranty |
| Weight | 400 kg |
| Dimensions | 712 mm x 848 mm x 1900 mm |
Product Description
Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Parallel-capacity capable Increases total power capacity by using multiple UPSs simultaneously. Parallel-redundant capable Power the connected equipment with multiple UPSs to increase system redundancy. Cold-start capable Provides temporary battery power when the utility power is out. Front-access servicing Simplifies installation and maintenance while minimizing space requirements. Multiple levels of service With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you. 7x24 telephone technical support Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it. Network manageable Provides remote management of the UPS over the network. Integrates with InfraStruXure Central An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network. Multiple distribution options Superior design flexibility enables a wide range of customer requirements to be addressed. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. LED status indicators Quickly understand unit and power status with visual indicators.
Key Features
APC MGE Galaxy 5000 40 kVA. Output power capacity: 40 kVA, Output power: 36000 W, Input operation voltage (min): 480 V. AC outlets quantity: 2 AC outlet(s). Form factor: Tower, Product colour: Charcoal, Display type: LCD. Certification: CE, EN/IEC 62040-1-1, EN/IEC 62040-3, IEC 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-5, IEC.... Safety: cUL, UL
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC MGE Galaxy 5000 40 kVA uninterruptible power supply (UPS) 36000 W 2 AC outlet(s) (G5TUPS40) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC MGE Galaxy 5000 40 kVA uninterruptible power supply (UPS) 36000 W 2 AC outlet(s) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC MGE Galaxy 5000 40 kVA uninterruptible power supply (UPS) 36000 W 2 AC outlet(s) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the G5TUPS40.
