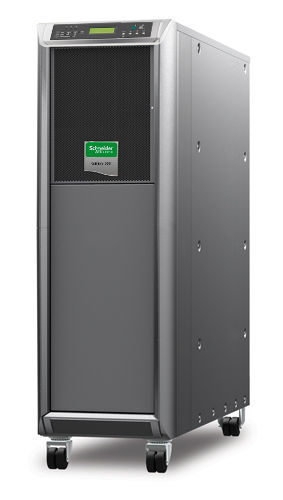

APC MGE Galaxy 300 uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 8000 W
Brand: APC · SKU: G3HT10KHLS · MPN: G3HT10KHLS · Category: Components
APC MGE Galaxy 300, Double-conversion (Online), 10 kVA, 8000 W, Sine, 340 V, 477 V. APC MGE Galaxy 300 uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 8000 W (part number G3HT10KHLS) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 950 mm, width 400 mm, bypass Built-in Maintenance Bypass, height 1300 mm, weight 130 kg, waveform Sine, smartslot Yes, efficiency 92.4%. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 950 mm |
|---|---|
| Width | 400 mm |
| Bypass | Built-in Maintenance Bypass |
| Height | 1300 mm |
| Weight | 130 kg |
| Waveform | Sine |
| SmartSlot | Yes |
| Efficiency | 92.4% |
| Power plug | Terminal |
| Form factor | Tower |
| Noise level | 54.5 dB |
| Crest factor | 2.5:1 |
| Display type | LCD |
| Output power | 8000 W |
| UPS topology | Double-conversion (Online) |
| Certification | EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111 |
| Package depth | 965 mm |
| Package width | 800 mm |
| LED indicators | Yes |
| Package height | 1440 mm |
| Package weight | 155 kg |
| Product colour | Grey |
| Input frequency | 45/65 Hz |
| Maximum current | 19 A |
| Warranty | 3-Year Warranty |
| Weight | 130 kg |
| Dimensions | 400 mm x 950 mm x 1300 mm |
Product Description
Galaxy 300Features & Benefits Serviceability 5x8 Start-up service included Required for full coverage of factory warranty Front-access servicing Simplifies installation and UPS maintenance while minimizing space requirements. Economy Cost of acquisition Designed to provide an optimized price/performance ratio, a number of exceptional features have been carefully selected to optimize both performance and cost benefits. Availability Dual feed input Allows installation of two independent power sources with the option of hot stand-by configuration to provide redundancy for mission critical applications. Parallel-redundant capable Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy Double conversion on-line topology Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source. Wide input voltage range Designed for harsh electrical environments to save battery life. Sustainability RoHS Certifies that electronic devices don't contain hazardous metals and flame retardants EU CoC for UPS Ensures that UPSs sold in the EU are highly efficient Convenience Easy to install Innovative design allows for fast, easy installation by almost anybody. Manageability Integrated network management Provides complete remote monitoring and control of the UPS. Enables you to monitor remote UPS's from a web browser or industry standard Network Management System.
Key Features
APC MGE Galaxy 300. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 8000 W. Power plug: Terminal. Form factor: Tower, Product colour: Grey, Display type: LCD. Compliance certificates: RoHS, Certification: EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111. Width: 400 mm, Depth: 950 mm, Height: 1300 mm
