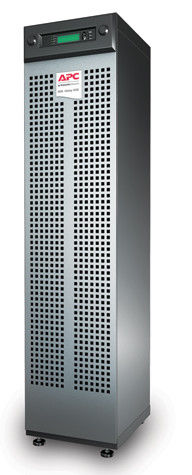

APC MGE Galaxy 3500 20kVA 400V 3:1 uninterruptible power supply (UPS) 16000 W

Brand: APC · SKU: G35T20K3I2B2S · MPN: G35T20K3I2B2S · Category: Components

APC MGE Galaxy 3500 20kVA 400V 3:1 uninterruptible power supply (UPS) 16000 W
Request for Quote
Backorder

APC MGE Galaxy 3500 20kVA 400V 3:1, 20 kVA, 16000 W, 40/70 Hz, 27 A, 51.3 dB, Sealed Lead Acid (VRLA). APC MGE Galaxy 3500 20kVA 400V 3:1 uninterruptible power supply (UPS) 16000 W (part number G35T20K3I2B2S) is an enterprise power supplies product available from Server Tech Central. Key specifications include weight 402 kg, noise level 51.3 dB, battery type VRLA, output power 16000 W, package weight 428.2 kg, product colour Black, input frequency 40/70 Hz, maximum current 27 A. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Weight402 kg
Noise level51.3 dB
Battery typeVRLA
Output power16000 W
CertificationCE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111
Package weight428.2 kg
Product colourBlack
Input frequency40/70 Hz
Maximum current27 A
Battery technologySealed Lead Acid (VRLA)
Dimensions (WxDxH)352 x 838 x 1491 mm
Operating altitude0 - 999.9 m
Output connections1 x 4-wire (3PH + G) 1 x 5-wire (3PH + N + G) 1 x Screw Terminals
Output voltage note+/- 5%
Battery recharge time5 h
Input connection type5-wire (3PH + N + G)
Output power capacity20 kVA
Non-operating altitude0 - 15000 m
Emergency Power Off (EPO)Yes
Storage temperature (T-T)-15 - 45 °C
Package dimensions (WxDxH)650 x 1062 x 1643 mm
Operating temperature (T-T)0 - 40 °C
Replacement battery cartridge2
Storage relative humidity (H-H)0 - 95%
Warranty3-Year Warranty
Weight402 kg

Product Description

APC MGE Galaxy 3500, 16 kW / 20 kVA,Input 400V 3PH / Output 230V, Extended runtime model. Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manual. - Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. - Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. - Parallel-redundant capable Power the connected equipment with multiple UPSs to increase system redundancy Availability - Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. - Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced - Parallel-capacity capable Increases total power capacity by using multiple UPSs simultaneously. - Advanced electrical features Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency - Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. - Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault. - Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Manageability - Built-in Web/SNMP management Full-featured management via a Web browser as well as comprehensive management from a Network Management System. - Environmental Monitoring Prevent equipment failure from a full range of threatening environmental conditions. - LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. - Audible alarms Provides notification of changing utility power and UPS conditions.

Key Features

APC MGE Galaxy 3500 20kVA 400V 3:1. Output power capacity: 20 kVA, Output power: 16000 W, Input frequency: 40/70 Hz. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 5 h. Product colour: Black. Certification: CE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO.... Weight: 402 kg

Frequently Asked Questions

Is this product genuine OEM?

Yes, this APC MGE Galaxy 3500 20kVA 400V 3:1 uninterruptible power supply (UPS) 16000 W (G35T20K3I2B2S) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This APC MGE Galaxy 3500 20kVA 400V 3:1 uninterruptible power supply (UPS) 16000 W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the APC MGE Galaxy 3500 20kVA 400V 3:1 uninterruptible power supply (UPS) 16000 W compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the G35T20K3I2B2S.
