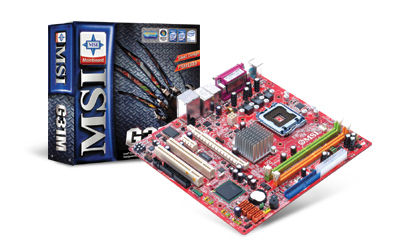

MSI G31M-F motherboard LGA 775 (Socket T) micro ATX
Brand: MSI · SKU: G31M-F · MPN: G31M-F · Category: Components
MSI G31M-F, Intel, LGA 775 (Socket T), 4 GB, Realtek RTL8111B, 10/100/1000 Mb/s, micro ATX. MSI G31M-F motherboard LGA 775 (Socket T) micro ATX (part number G31M-F) is an enterprise components product available from Server Tech Central. Key specifications include depth 215 mm, width 244 mm, audio chip Realtek ALC888, lan controller Realtek RTL8111B, expansion slots - 1 x PCI Express 16X - 1 x PCI Express 1X - 2 x PCI 2.3 32-bit, s/pdif out port Yes, processor socket LGA 775 (Socket T), headphone outputs 1. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 215 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC888 |
| LAN controller | Realtek RTL8111B |
| Expansion slots | - 1 x PCI Express 16X - 1 x PCI Express 1X - 2 x PCI 2.3 32-bit |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 6 |
| Networking features | 10/100/1000 Mb/s |
| PS/2 ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Parallel ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Floppy disk drive connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 215 mm |
Product Description
CPU - Supports Socket 775 for Intel Core2 Quad/ Duo, P4 5XX, 6XX, Pentium D 8XX, 9XX and Celeron D processors - Supports FSB 533/800/1066/1333 MHz - Supoprts EIST techonology - Supports Intel Hyper-Threading (HT) Technology - Supports Intel Dual/Quad Core Technology to 1333MHz and up Chipset Intel® G31 Chipset - Supports FSB 533/800/1066/1333 MHz - Support Dual channel DDR2 667/800 memory interface up to 4GB - Support PCI Express 16X & 1X interface Intel® ICH7 Chipset - Integrated Hi-Speed USB 2.0 controller, 480Mb/sec, 8ports - 4 Serial ATAII ports w/ transfer rate up to 3Gb/s - 1 channel Ultra ATA 100 bus Master IDE controller - PCI Master v 2.3, I/O ACPI 2.0 Compliant FSB - Support FSB 533/800/1066/1333 MHz Main Memory - Supports 2 unbuffered DIMM of 1.8 Volt DDR2 SDRAM - Supports up to 4GB memory size - Support Dual Channel DDR2 667/800MHz On-Board IDE One Ultra DMA 66/100 IDE controller integrated in ICH7 - Supports PIO, Bus Master operation modes - Can connect up to 2 Ultra ATA drives Serial ATAII controller integrated in ICH7 - Up to 300MB/s transfer speed - Can connect up to 4 SATA2 drives - Supports SATA hot plug High Definition link controller integrated in Intel ICH7 chip - 8 channels audio codec Realtek ALC888 - Compliance with Azalia 1.0 spec LAN - Realtek RTL8111B - Support 10/100/1000 Mb/s - Compliane with PCI 2.2 - Supports ACPI Power Management BIOS - The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. - The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Mounting - 6 mounting holes
Key Features
MSI G31M-F. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB. LAN controller: Realtek RTL8111B, Networking features: 10/100/1000 Mb/s. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888. Width: 244 mm, Depth: 215 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI G31M-F motherboard LGA 775 (Socket T) micro ATX (G31M-F) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI G31M-F motherboard LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI G31M-F motherboard LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the G31M-F.
