Brand: Finisar · SKU: FTLF1217P2BTL · MPN: FTLF1217P2BTL · Category: Networking

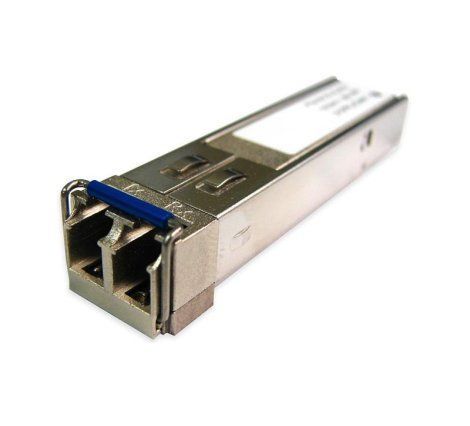

The Finisar FTLF1217P2BTL is a Small Form Factor Pluggable (SFP) transceiver module compatible with the SFP Multi-Sourcing Agreement (MSA). It supports data rates up to 200 Mb/s bi-directionally and is designed for 100Base-FX Ethernet, FDDI, ESCON, and Multimode SONET standards (OC-3 SR-0, OC-1 SR-0). It uses a 1310nm LED-based transmitter and operates over Duplex Multi-Mode Fiber (MMF) for distances up to 2km on 62.5/125μm MMF. The module features a Duplex LC connector, a metal enclosure for lower EMI, and built-in digital diagnostic functions (DOM/DDM) available via a 2-wire serial bus. It operates on a single 3.3V power supply and is RoHS Compliant and Lead-Free. It is specified for an industrial operating temperature range of -40°C to 85°C. The 'P2' in the part number indicates the wide extraction bail type.
| Connector | Duplex LC |
|---|---|
| Data Rate | 100 Mb/s (125 Mb/s for FE, up to 200 Mb/s) |
| Compliance | RoHS Compliant, SFP MSA |
| Media Type | Multi-Mode Fiber (MMF) |
| Wavelength | 1310nm |
| Form Factor | SFP |
| Power Supply | Single 3.3V |
| Optical Budget | 11 dB (minimum guaranteed) |
| Maximum Distance | 2 km |
| Digital Diagnostics | DDM/DOM support |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Warranty | Finisar Standard 1 Year Warranty (for genuine part) |
| Weight | 19 g |
| Dimensions | 12.7 mm (Width) x 55.9 mm (Depth) x 7.62 mm (Height) |
The Finisar FTLF1217P2BTL is an industrial temperature SFP transceiver for 100Base-FX Fast Ethernet links over multi-mode fiber, supporting distances up to 2km. It features a 1310nm wavelength, LC duplex connector, and includes Digital Optical Monitoring (DOM) capabilities.
Yes, this Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver (FTLF1217P2BTL) is 100% genuine Finisar hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FTLF1217P2BTL.
